The Pill by Shelly
SH-THEPILL
Regular price
$36.00

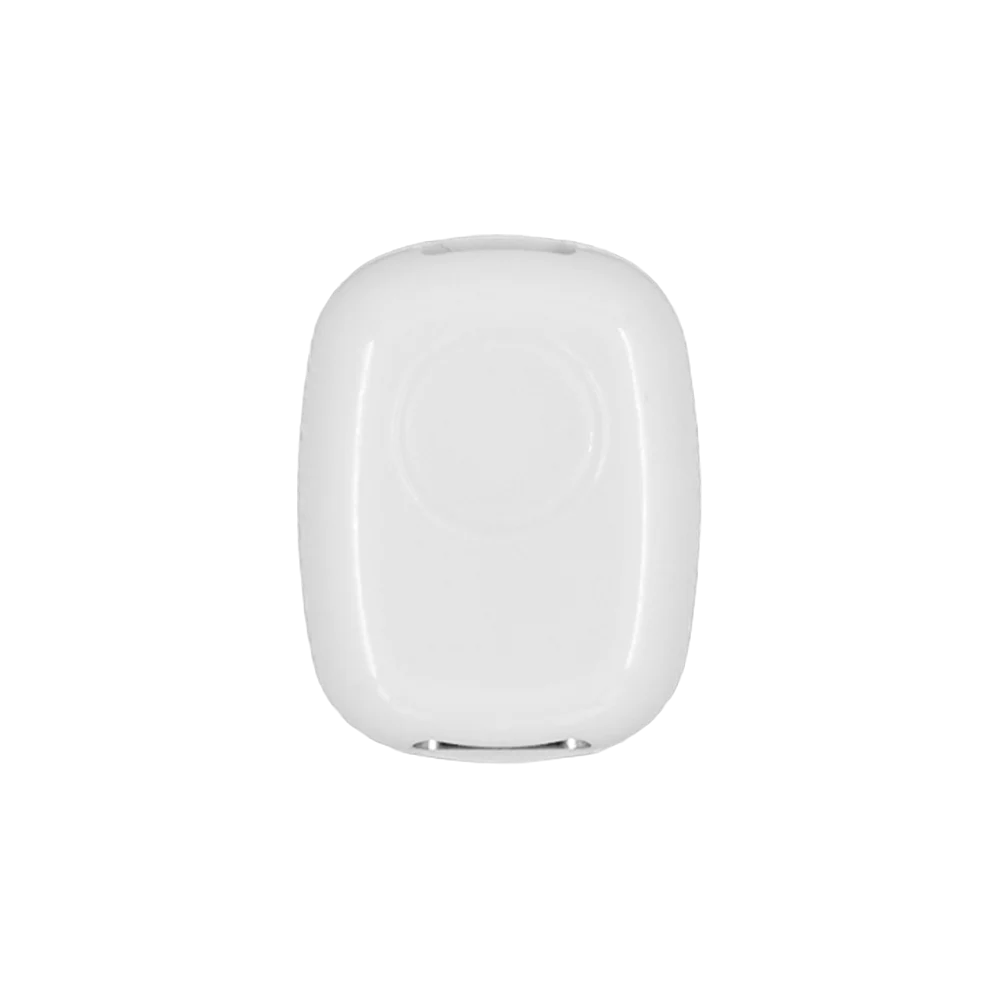

The Pill by Shelly is a compact USB-C powered automation controller designed for monitoring sensors, collecting environmental data, and interfacing with low-voltage devices. Combining Wi-Fi and Bluetooth connectivity with the flexibility of the Shelly Gen3 platform, it provides a powerful foundation for custom automation, monitoring, and control projects.

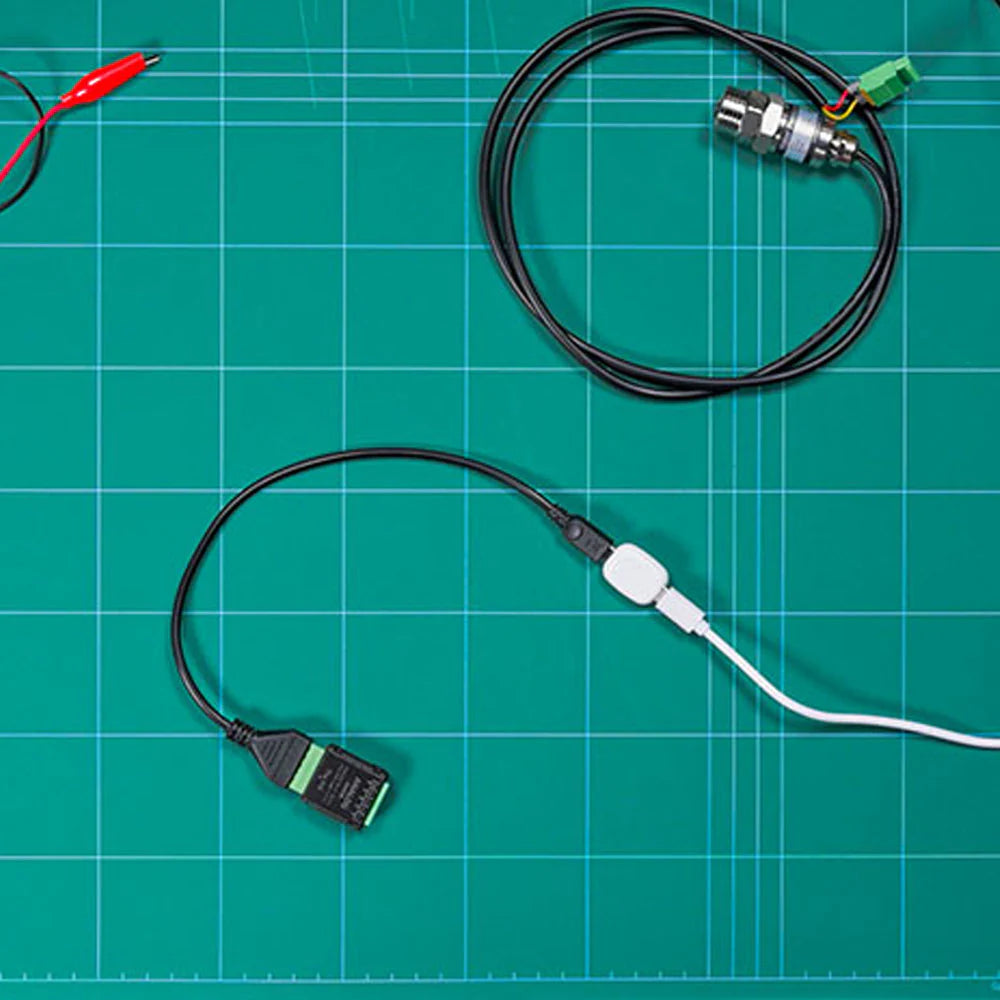

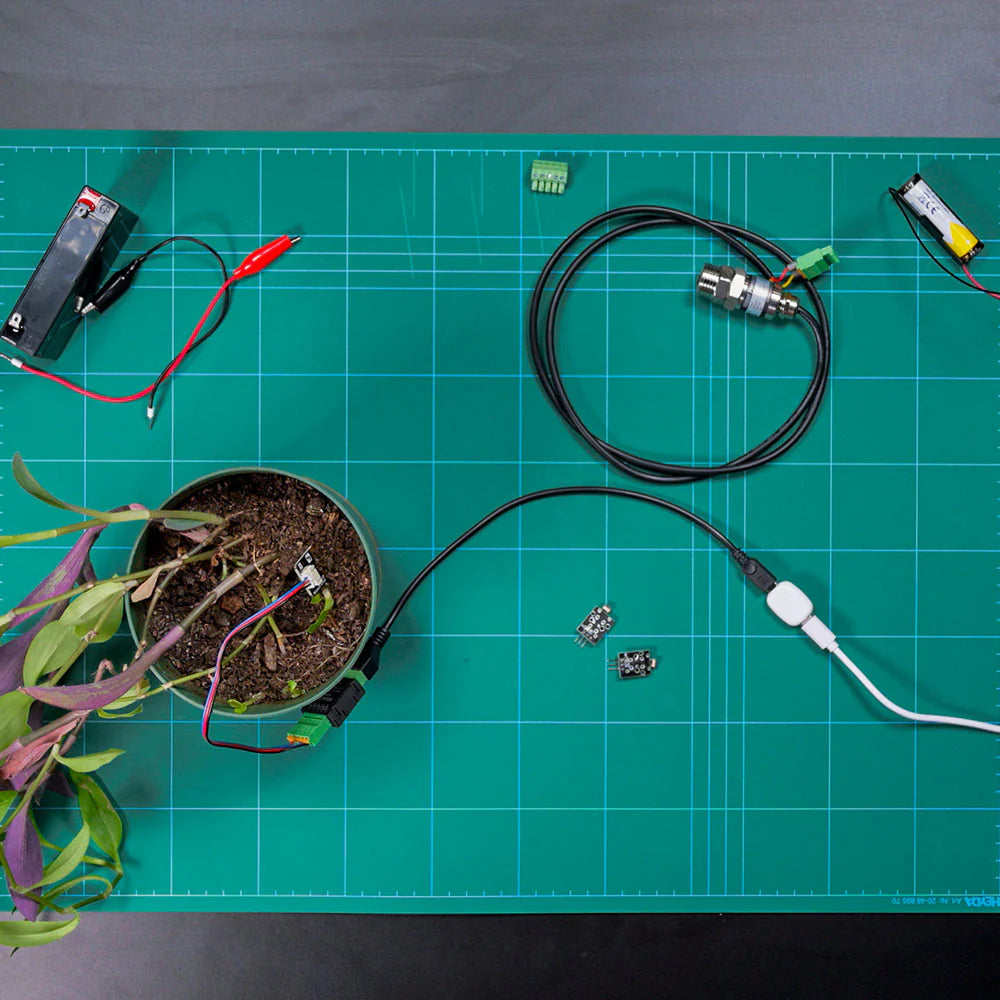

Designed for integration with temperature sensors, humidity sensors, voltage monitoring devices, and digital inputs and outputs, The Pill can act as a standalone monitoring device or become part of a larger automation system. Built-in support for scripting, local actions, MQTT, WebSocket, and HTTP APIs makes it suitable for advanced smart home, energy monitoring, and industrial applications.
Its modular design allows functionality to be expanded through compatible add-ons, enabling digital I/O control, analog sensing, and high-accuracy voltage measurement for a wide range of custom solutions.
Key Features
- Wi-Fi and Bluetooth connectivity

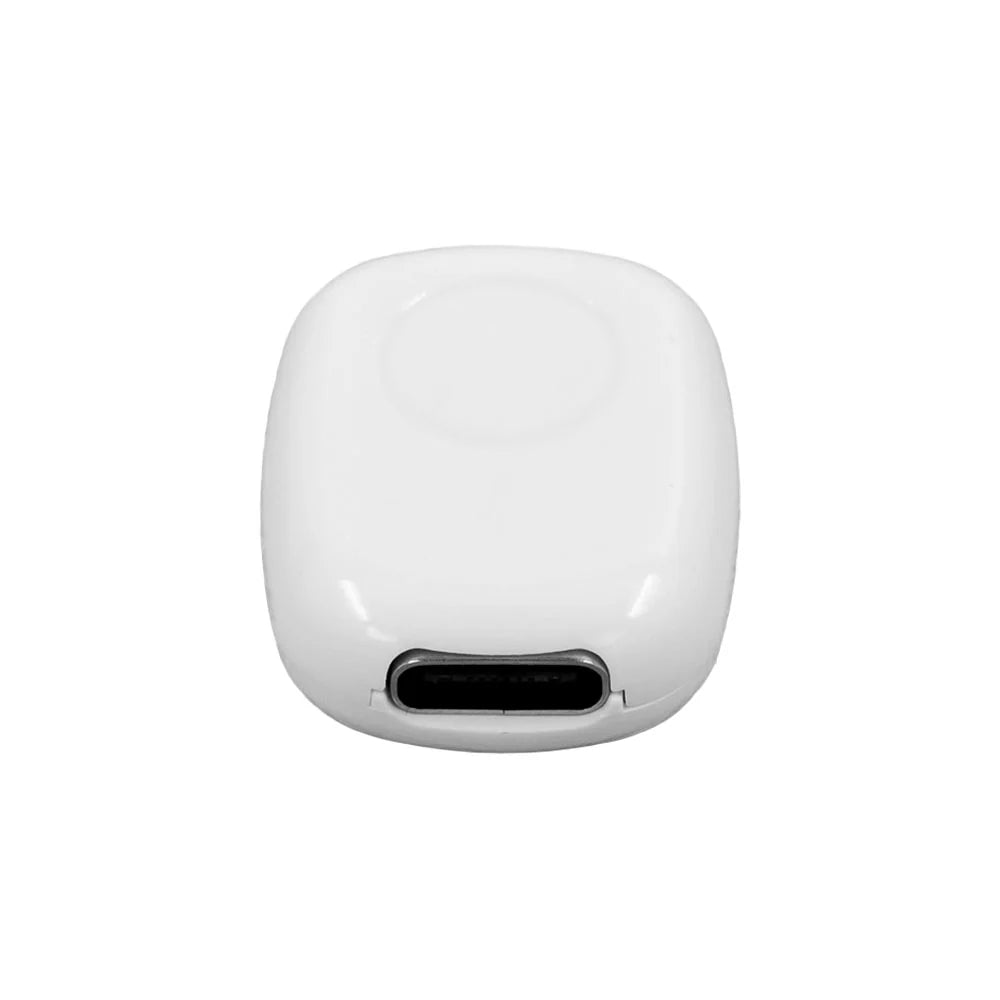

- USB-C powered using a standard 5V supply
- Built-in Bluetooth gateway functionality
- Shelly Gen3 platform with scripting support
- Local actions and virtual components

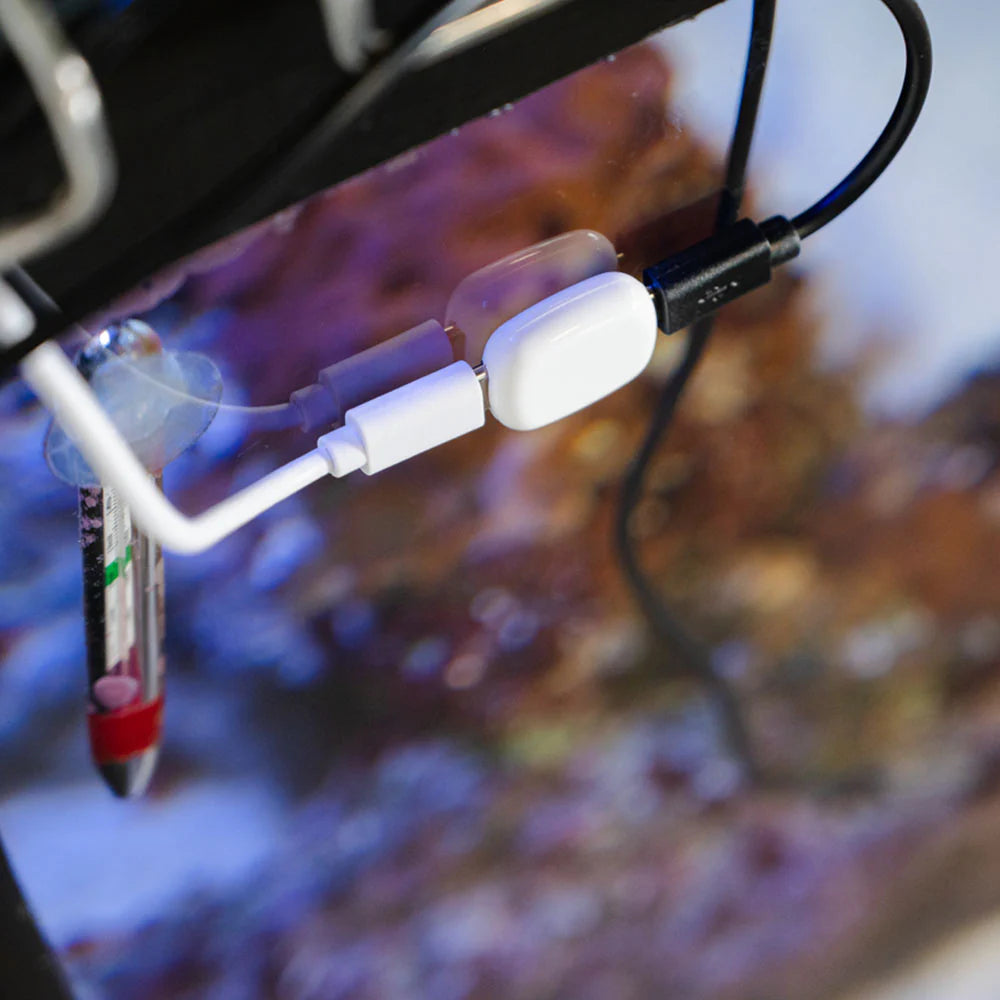

- Environmental monitoring and sensor integration
- Cloud logging and historical statistics
- MQTT, WebSocket, and HTTP API support
- Expandable with compatible Shelly add-ons
- Supports digital inputs and outputs
- Analog sensing capabilities
- High-accuracy DC voltage monitoring up to 30V with compatible add-ons
- Configurable peripheral modes for custom applications
- Compact design for easy installation
Specifications
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
26 x 19.95 x 8.5 mm / 1.02 x 0.79 x 0.34 inch |
|
Weight: |
3 g / 0.11 oz |
|
Shell material: |
Plastic |
|
Shell colour: |
White |
|
Environmental |
|
|
Ambient working temperature: |
-20 to 40 °C / -5 to 105 °F |
|
Humidity: |
30 % - 70 % RH |
|
Electrical |
|
|
Power supply: |
5 V⎓ (from USB Type-C port) |
|
Power consumption: |
< 1 W |
|
Input circuits ratings |
|
|
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
|
Digital inputs max. voltage |
3.3 V |
|
Output circuits ratings |
|
|
Max. switching voltage: |
3.3 V (logic-level) |
|
Max. switching current: |
20 mA |
|
Sensors, meters |
|
|
Voltmeter (DC) |
0 V - 2.5 V (Built-in) 0 V - 30 V (Requires external Addon) |
|
Voltmeter accuracy: |
±(2% + 5d) |
|
Internal-temperature sensor: |
No |
|
External sensors supported: |
single DHT22 up to five DS18B20 |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2401 - 2483 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
|
Bluetooth |
|
|
Protocol: |
BLE 4.2 |
|
RF band: |
2402 - 2480 МHz |
|
Max. RF power: |
< 10 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
Microcontroller unit |
|
|
CPU: |
Shelly ESP32 C3 (ESP-Shelly-C38F) |
|
Flash: |
8MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
Encryption: |
Yes |
|
Other: |

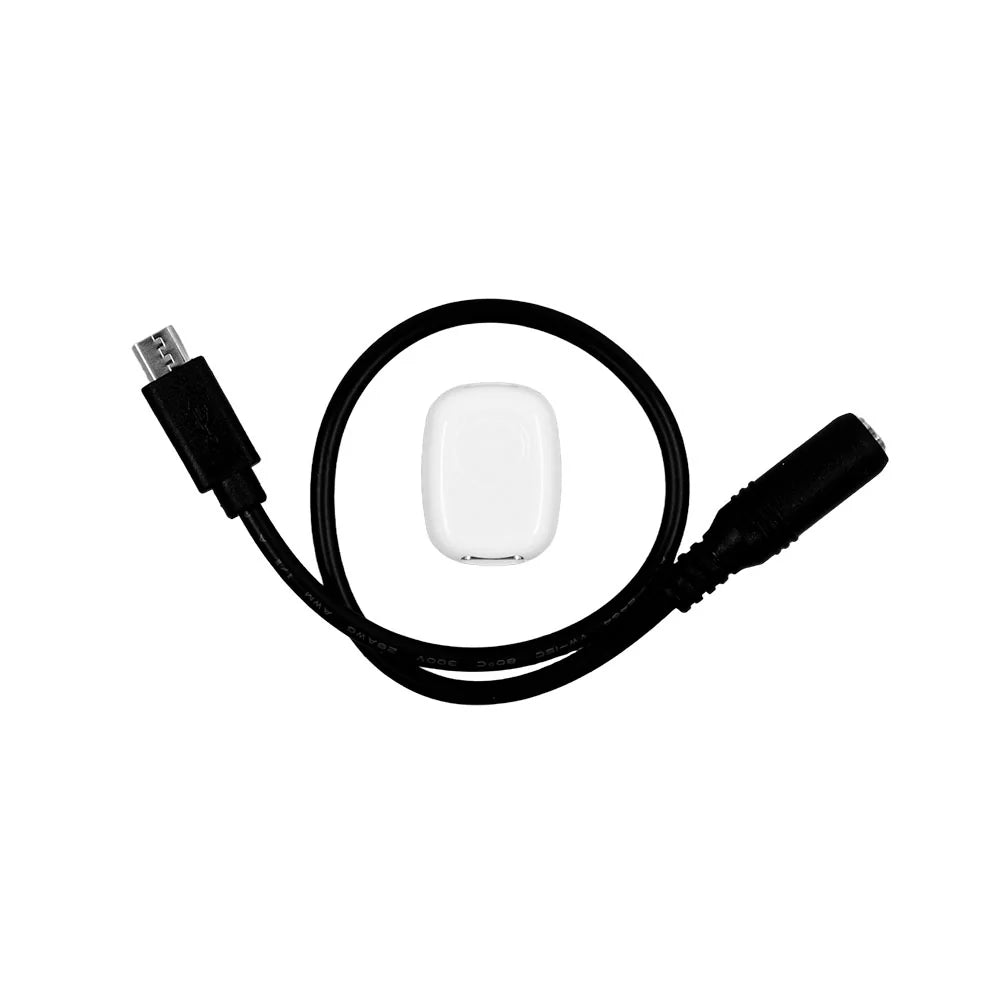

Supported Accessories: Cable adapter - 3.5mm Jack (incl. in the package) Spliter 1 to 5 - 3.5mm Jack Temeprature sensor DS18B20 - 3.5mm jack Supported add-ons: 5-terminal Add-on SSR Add-on Analog 0-30V Add-on |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
