SSR Add-on (Accessory for The Pill by Shelly)
PILLSSR
Regular price
$22.99 AUD
PILLSSR
Regular price
$22.99 AUD

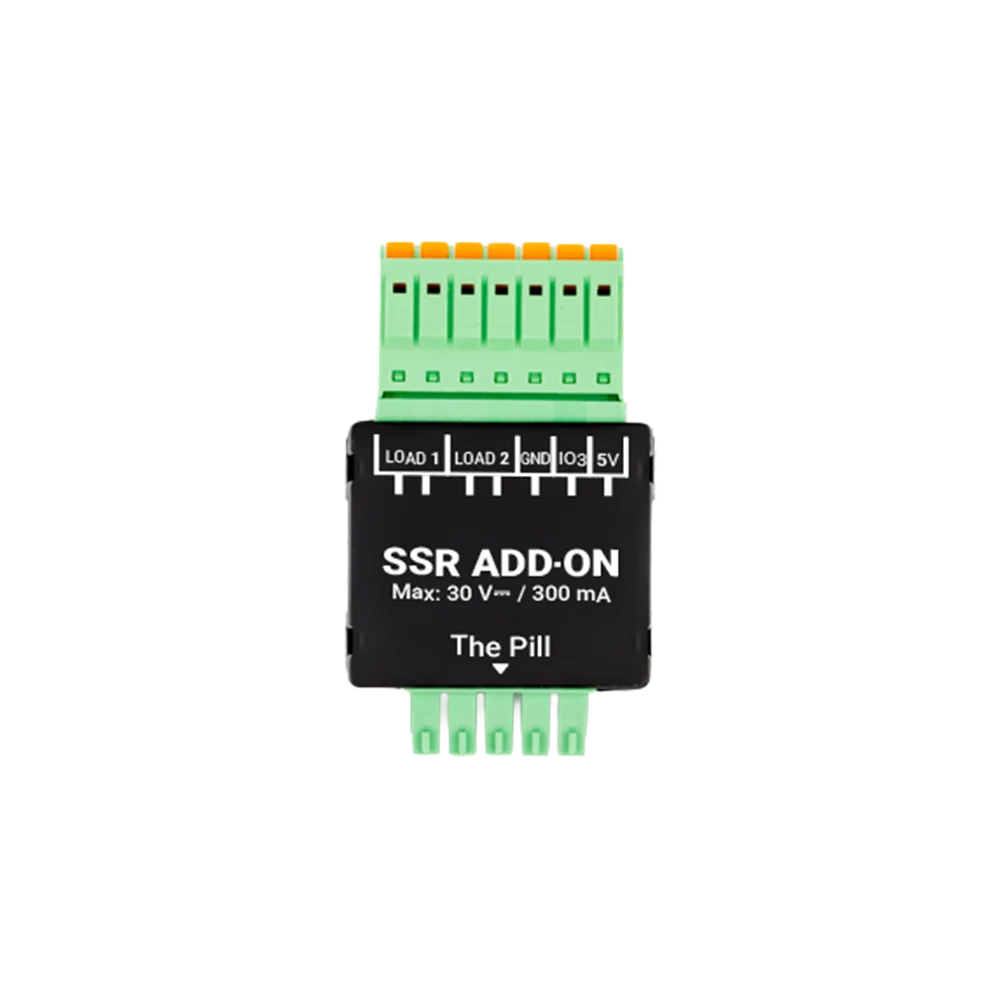

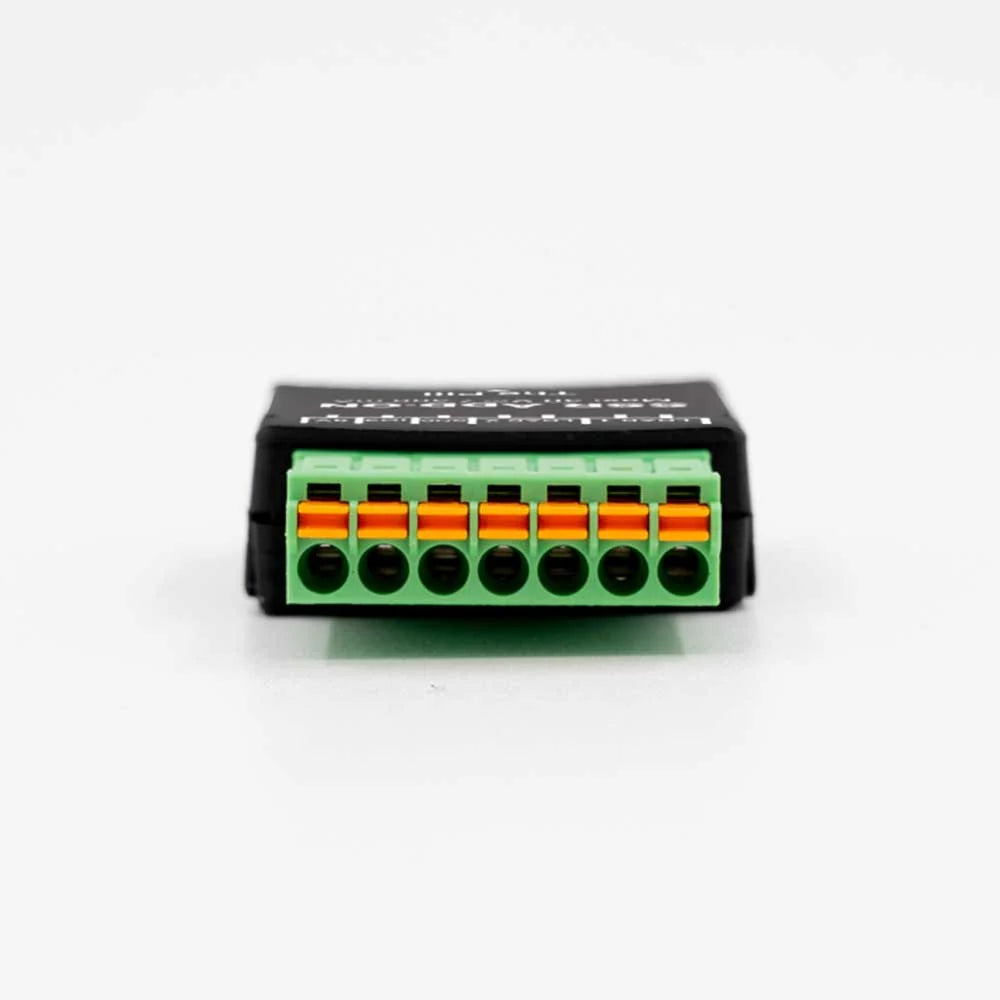

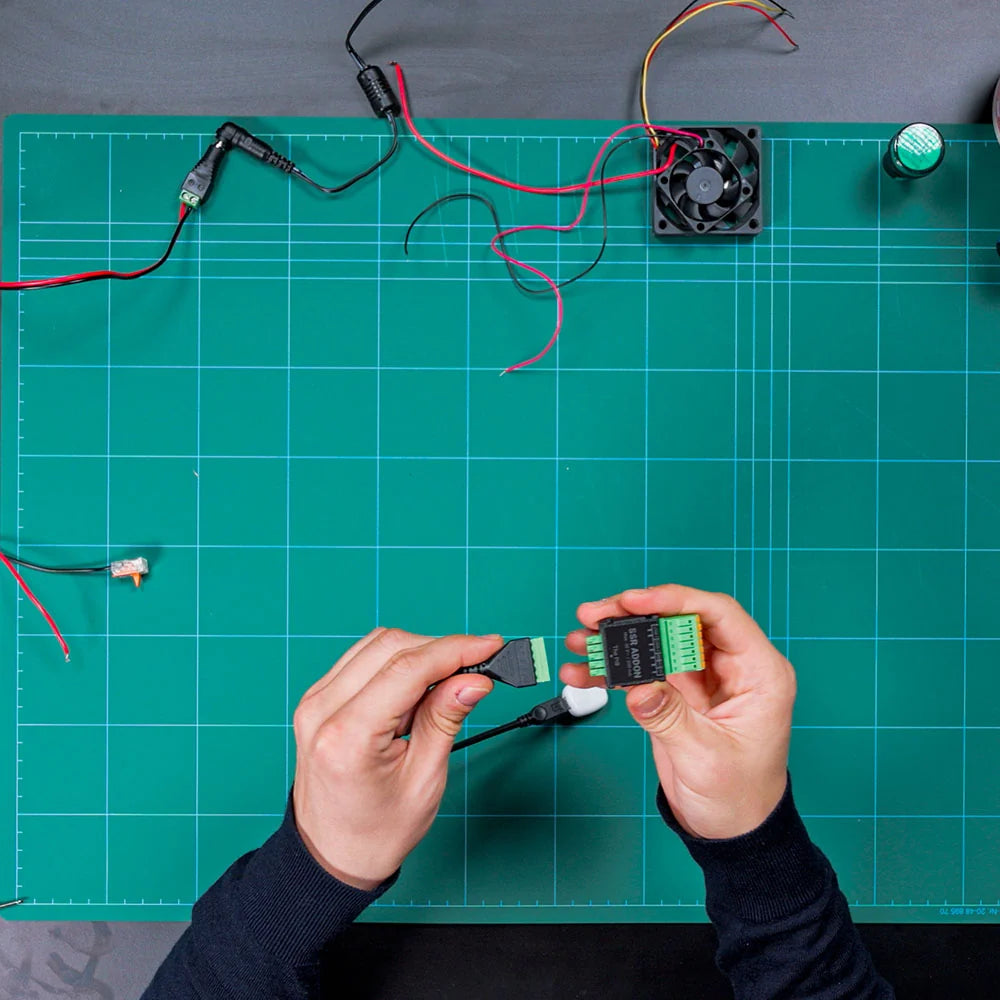

The SSR Add-on enables The Pill by Shelly to control two independent DC loads using galvanically isolated solid-state relays. Each channel supports loads up to 30 V DC and 300 mA, making it suitable for low-power switching and automation applications. The 5-Terminal Add-on is required for connection to The Pill.
|
Physical |
|
|
Size (HxWxD): |
36 mm x 31mm x 11.5mm |
|
Weight: |
12 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power consumption: |
< 0.6 W |
|
Max. switching voltage: |
30 V⎓ |
|
Max. switching current: |
300 mA |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
