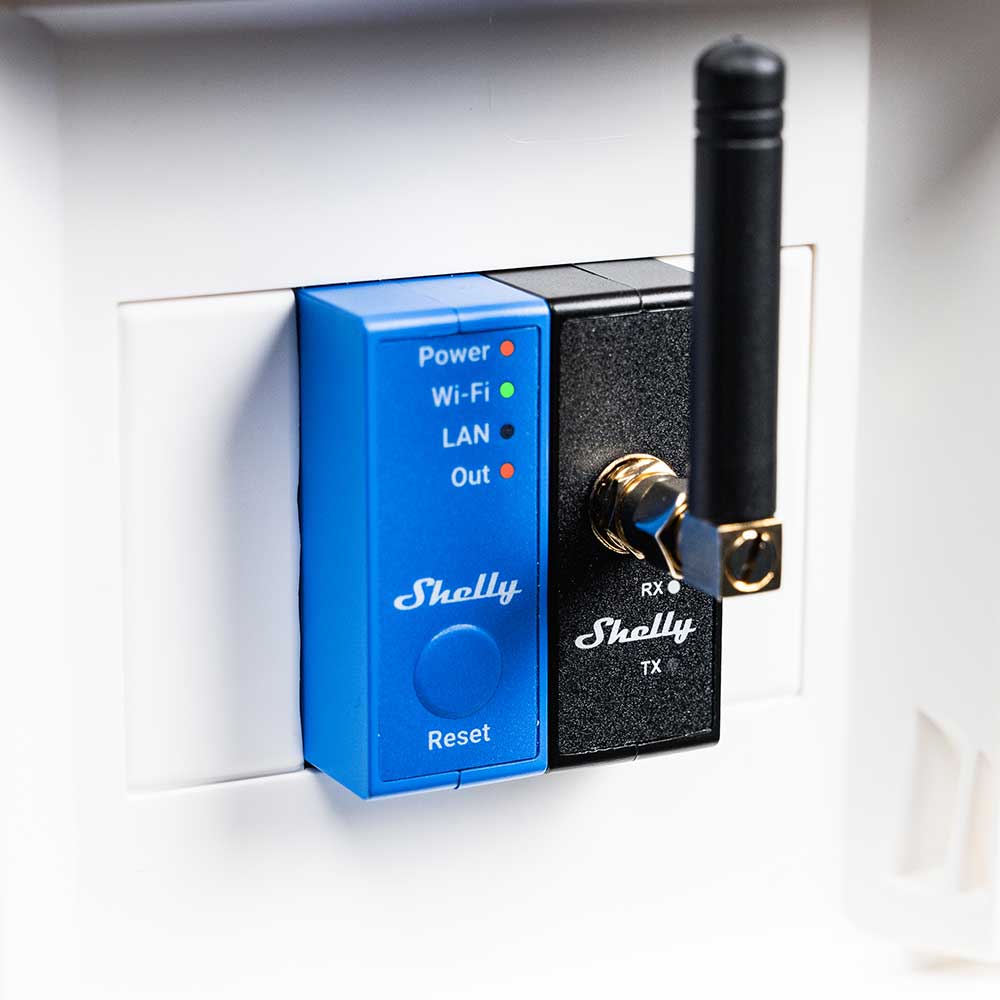

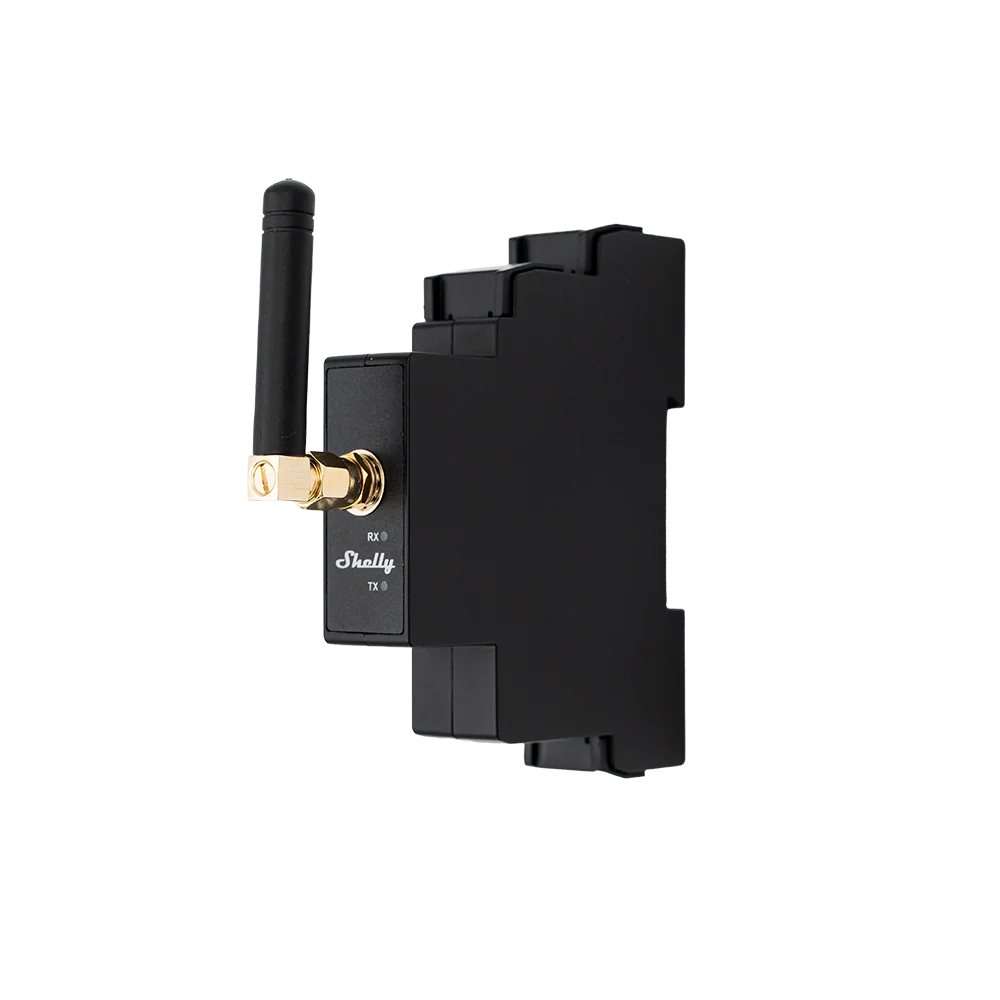

Shelly Pro LoRa Add-on – Long-Range EU868
SHELLYPROLORA
Regular price
$156.00 AUD
SHELLYPROLORA
Regular price
$156.00 AUD
The Shelly Pro LoRa Add-on provides long-range wireless communication for compatible Shelly Pro devices, with a communication range of up to 5 km under suitable conditions.
Designed for applications where Wi-Fi or conventional wireless networks aren't practical, it is suited to remote facilities, outdoor infrastructure, street lighting, agriculture and distributed automation systems.

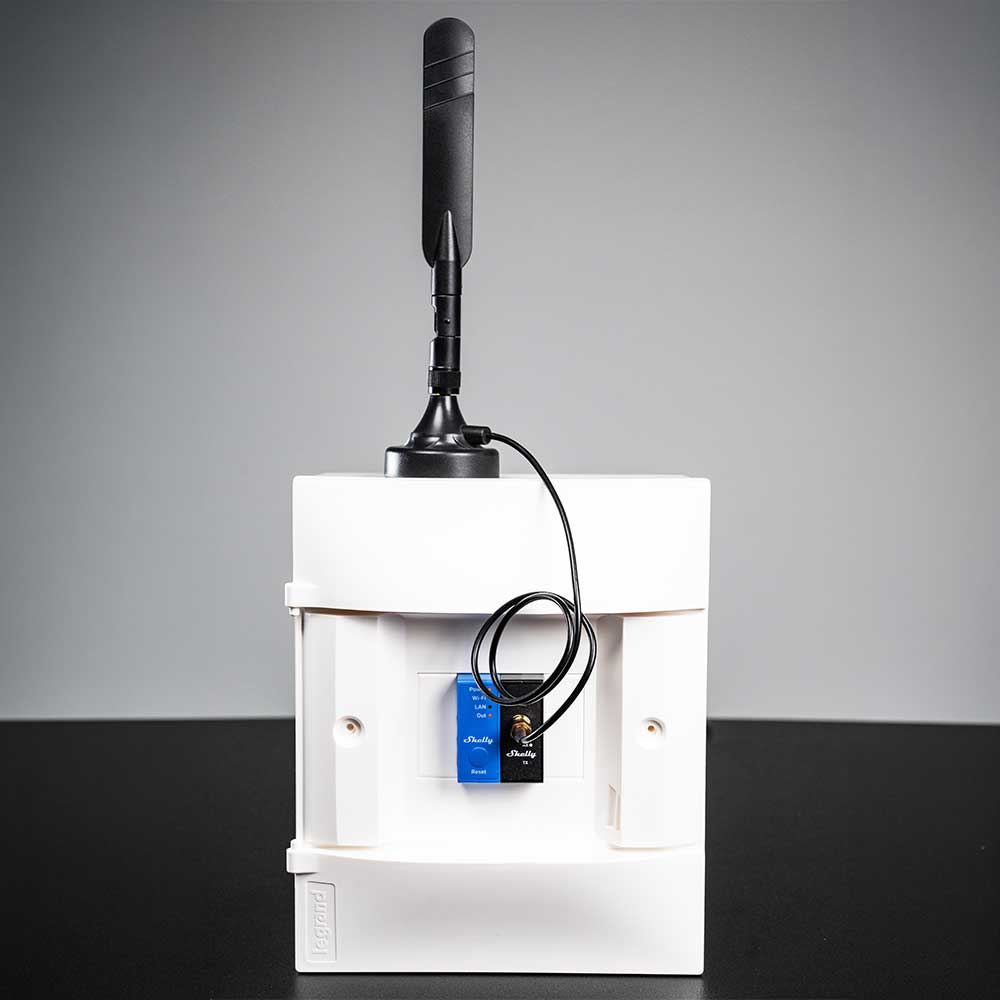

The galvanically isolated add-on uses LoRa EU868 communication and features an SMA antenna connector. The included antenna can be positioned outside metal enclosures, or replaced with a suitable higher-gain antenna where additional coverage is required.
Support for custom scripting allows the add-on to be adapted for specialised automation and monitoring applications.
Key features:
- LoRa long-range wireless communication
- Up to 5 km communication range under suitable conditions
- EU868 frequency band

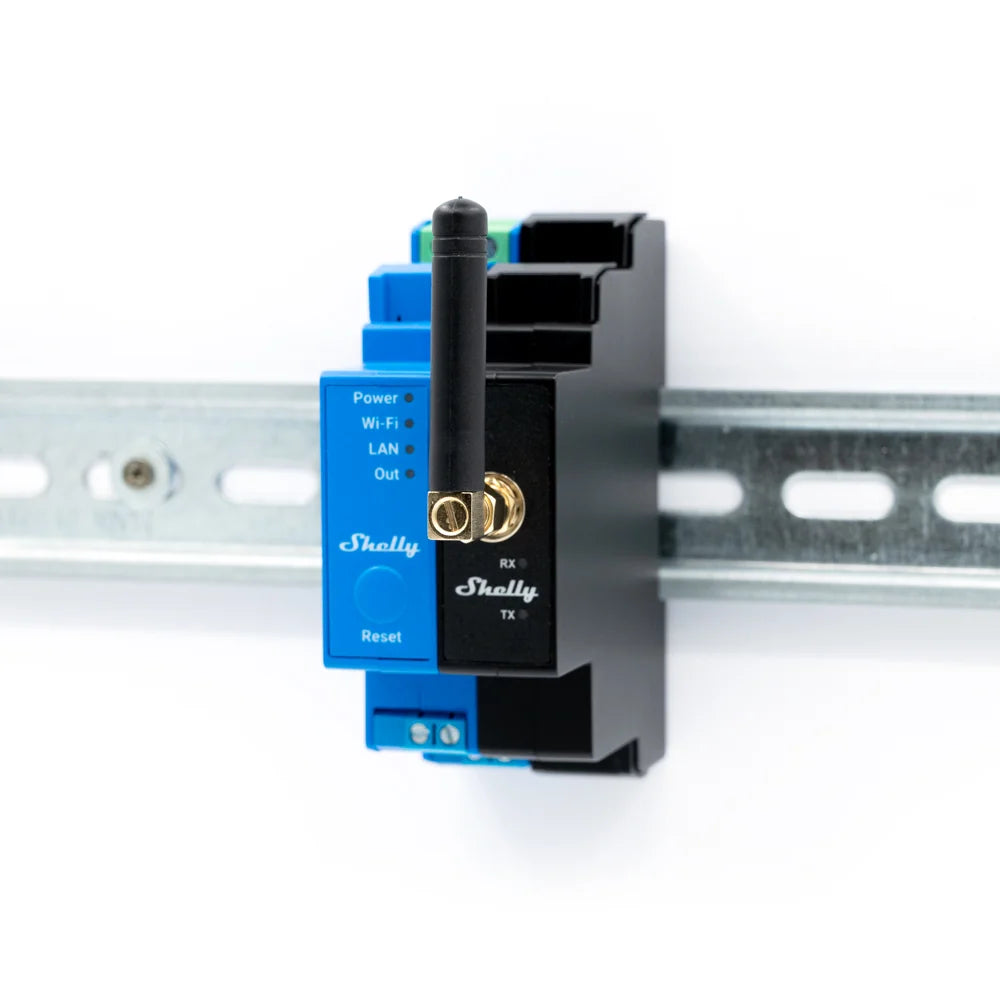

- Designed for compatible Shelly Pro devices
- Galvanically isolated
- SMA antenna connector
- Included antenna can be extended outside enclosures
- Supports compatible higher-gain antennas
- Custom scripting support
- Ideal for remote monitoring and distributed automation
|
Physical |
|
|
Size (HxWxD): |
94x19x78 mm / 3.70x0.75x3.07 inch (without antenna, with mounting bracket) 94x19x92 mm / 3.70x0.75x3.62 inch (with antenna, with mounting bracket) |
|
Weight: |
45 g / 1.59 oz (without antenna, with mounting bracket) 52 g / 1.83 oz (with antenna, with mounting bracket) |
|
Mounting: |
DIN Rail Via the Shelly proprietary serial interface to connect to a Shelly compatible device |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity |
30% to 70% RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
3.3 V (from compatible Shelly device) |
|
Power consumption: |
< 150 mW |
|
Radio |
|
|
LoRa |
|
|
RF band: |
EU868 |
|
Max. RF power: |
< 14 dBm |
|
Range: |
Up to 5 000 m / 16 400 ft |
|
Compatible antenna: |
|
|
Frequency range: |
863-870 MHz |
|
Impedance: |
50 Ω |
|
SWR |
< 3.0 |
|
Connector: |
SMA-М |
|
Compatible host devices |
|
|
Compatible host devices: |
Shelly Pro 1 Shelly Pro 1PM Shelly Pro 2 Shelly Pro 2PM Shelly Pro 3EM Shelly Pro Dimmer 0/1–10V PM Shelly Pro Dimmer 1PM Shelly Pro Dimmer 2PM Shelly Pro EM-50 Shelly Pro RGBWW PM |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
