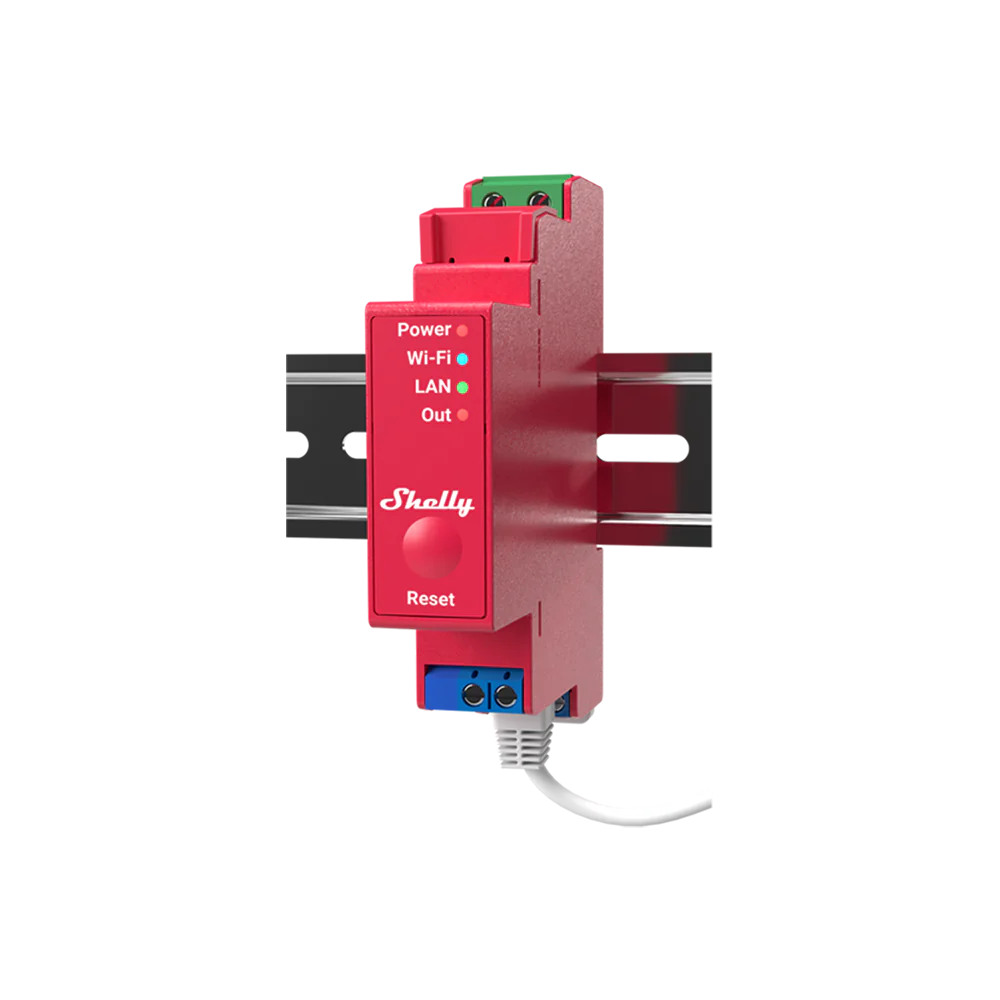

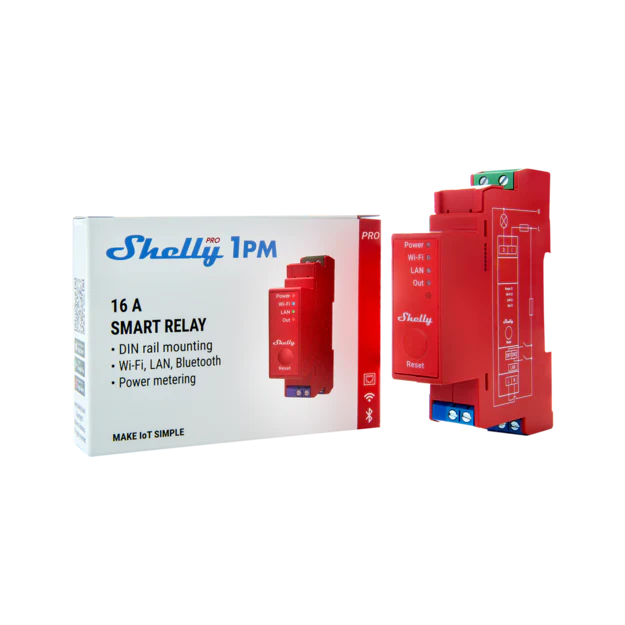

Name: Shelly Pro 1PM
Brand: Shelly
SKU: SH-SHELLYPRO1PM
Price: 125.60 AUD
Availability: InStock

Overview

The Shelly Pro 1PM is a professional-grade 1-channel relay switch, offering Wi-Fi, LAN, and Bluetooth connectivity for remote automation. Designed for circuit breaker box installation, it features precise power metering and advanced protection, making it perfect for smart home and facility automation.

Key Features

Multiple Connectivity Options

• Wi-Fi, LAN, and Bluetooth support for flexible control

• Reliable local and remote access without needing a hub

1-Channel Control with High Load Capacity

• Supports up to 16A for controlling appliances, lights, and electrical circuits

• Ideal for residential and commercial applications

Precise Power Monitoring

• Real-time energy consumption tracking

• Helps optimise energy use and reduce costs

Advanced Safety & Protection

• Overpower and overvoltage protection for connected devices

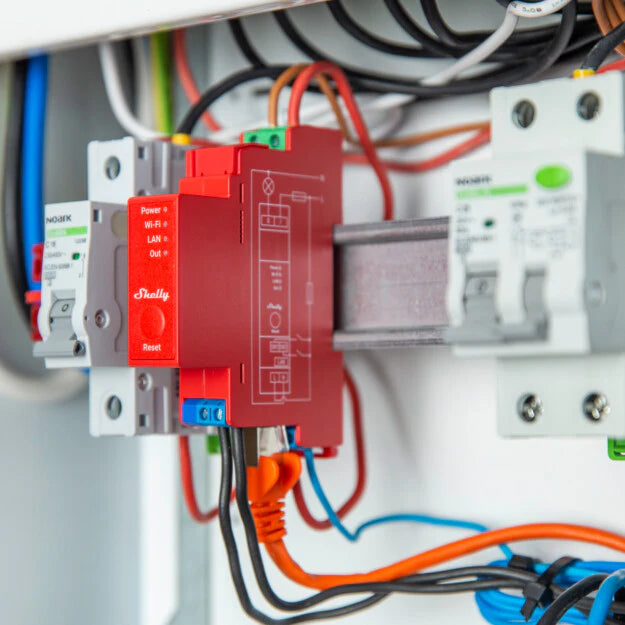

DIN Rail Mountable for Easy Installation

• Designed for secure mounting inside a circuit breaker box

• Professional-grade durability and long-term performance

PHYSICAL

Size (HxWxD): 94x19x69 m±0.5 m / 3.70x0.75x2.71 ±0.02 in

Weight:

Mounting: DIN rail

Screw terminals max torque: 0.4 Nm / 3.54 lbin

Conductor cross section:0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)

Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)

Shell material: Plastic

Colour: Red

ENVIRONMENTAL

Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F

Humidity 30 % to 70 % RH

Max. altitude2000 m / 6562 ft

ELECTRICAL

Power supply voltage AC: 110 - 240 V

Power supply voltage DC: N/A

Power consumption: < 3 W

Neutral not needed: No

OUTPUT CIRCUITS RATINGS

Max switching voltage AC: 240 V

Max switching voltage DC: N/A

Max switching current AC: 16 A

Max switching current DC: N/A

SENSORS, METERS

Voltmeter (AC)Yes

Ammeter (AC)Yes

Temperature sensor: Yes

RADIO

RF band: 2400 - 2495 MHz

Max. RF power: <20 dBm

Wi-Fi protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth Protocol: 4.2

Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

CPU: ESP32-D0WDQ6

Flash:8 MB

FIRMWARE CAPABILITIES

Schedules: 20Webhooks (URL actions):20 with 5 URLs per hook

Scripting: mJS

MQTT: Yes

CoAP: No

Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.

Electrical work must be carried out by a licensed electrician.
