Shelly LAN Switch

Overview

Shelly LAN Switch is a DIN-mountable Ethernet switch with 5 x RJ45 ports supporting speeds of 10/100 Mbps. Designed for integration with Shelly Pro relays and other essential devices, it ensures a stable and reliable wired connection for smart home and industrial applications.

Main Features

• DIN-mountable – Designed to meet global DIN rail standards for easy installation

• Direct AC Power – Operates on 110-230 V~, 50/60 Hz, eliminating the need for adapters

• Plug & Play – Easy installation and setup for quick network optimisation

Use Cases

Stable LAN Connection for Essential Devices

• Ensures a reliable wired connection to key appliances like HVAC, PV systems, and lighting

• Integration with Shelly Pro devices

Fast Wired Connection for Home Networks

• Provides high-speed, stable connectivity for computers, gaming consoles, smart TVs, and streaming devices

Easy Setup

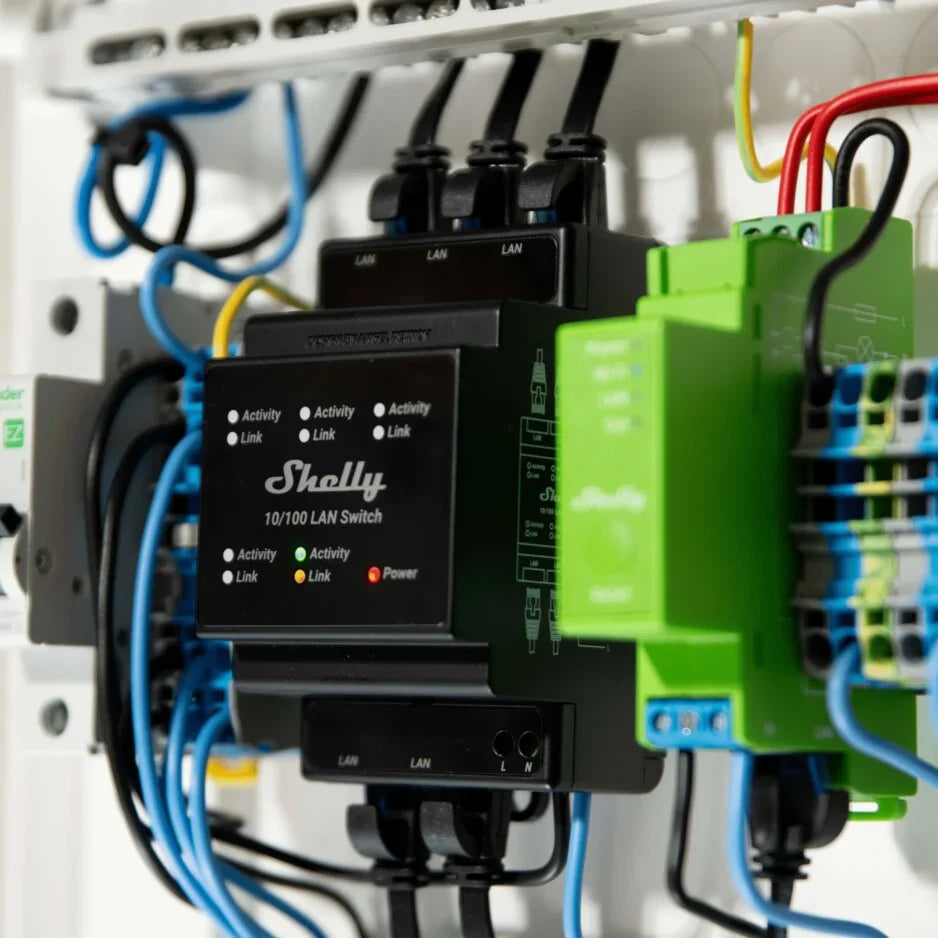

• Fits directly into the breaker box for easy network management

• Supports wired connections to up to 4 additional LAN devices

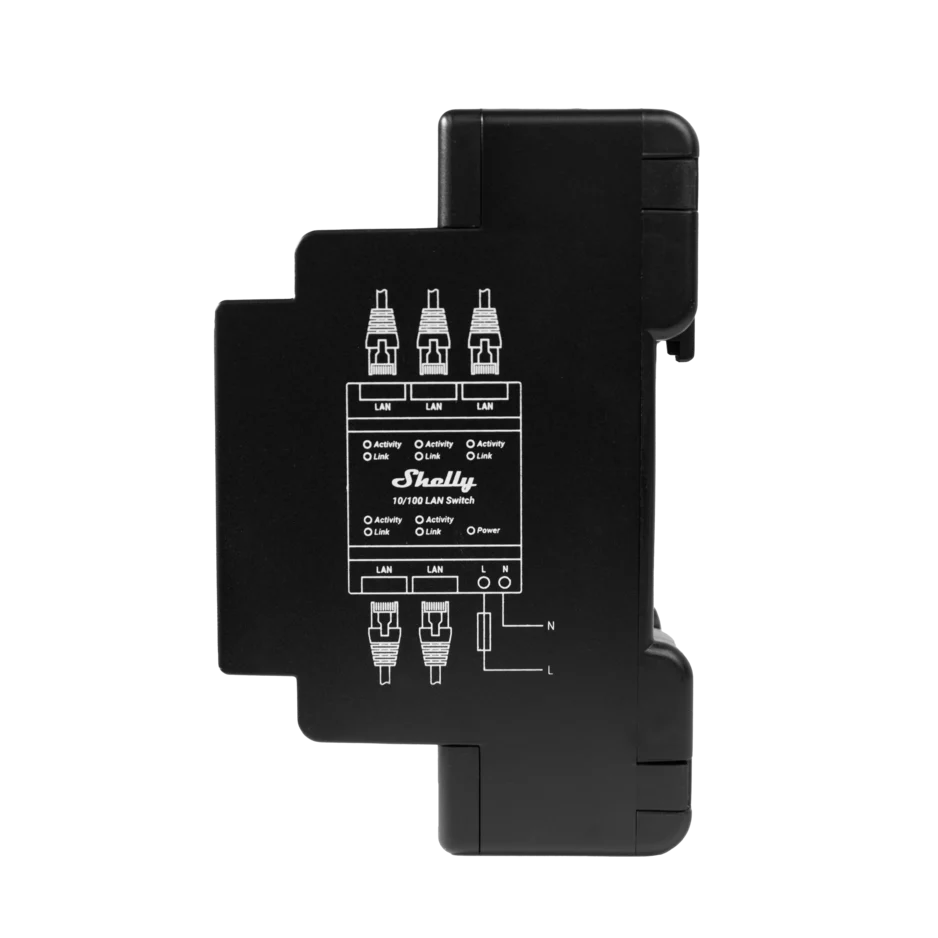

Device Electrical Interfaces

Inputs

• 2 wire inputs on screw terminals: 1 L (Live) and 1 N (Neutral)

Ethernet Ports

• 5 x RJ45 connectors

⚠ CAUTION! Plug in or unplug the LAN cable only when the device is powered off. The LAN cable connector must not have metallic parts in the areas touched during connection or disconnection.

Connectivity

• Ethernet
