Analog 0-30 V Add-on (Accessory for The Pill by Shelly)
PILL0-30
Regular price
$13.31 AUD
PILL0-30
Regular price
$13.31 AUD

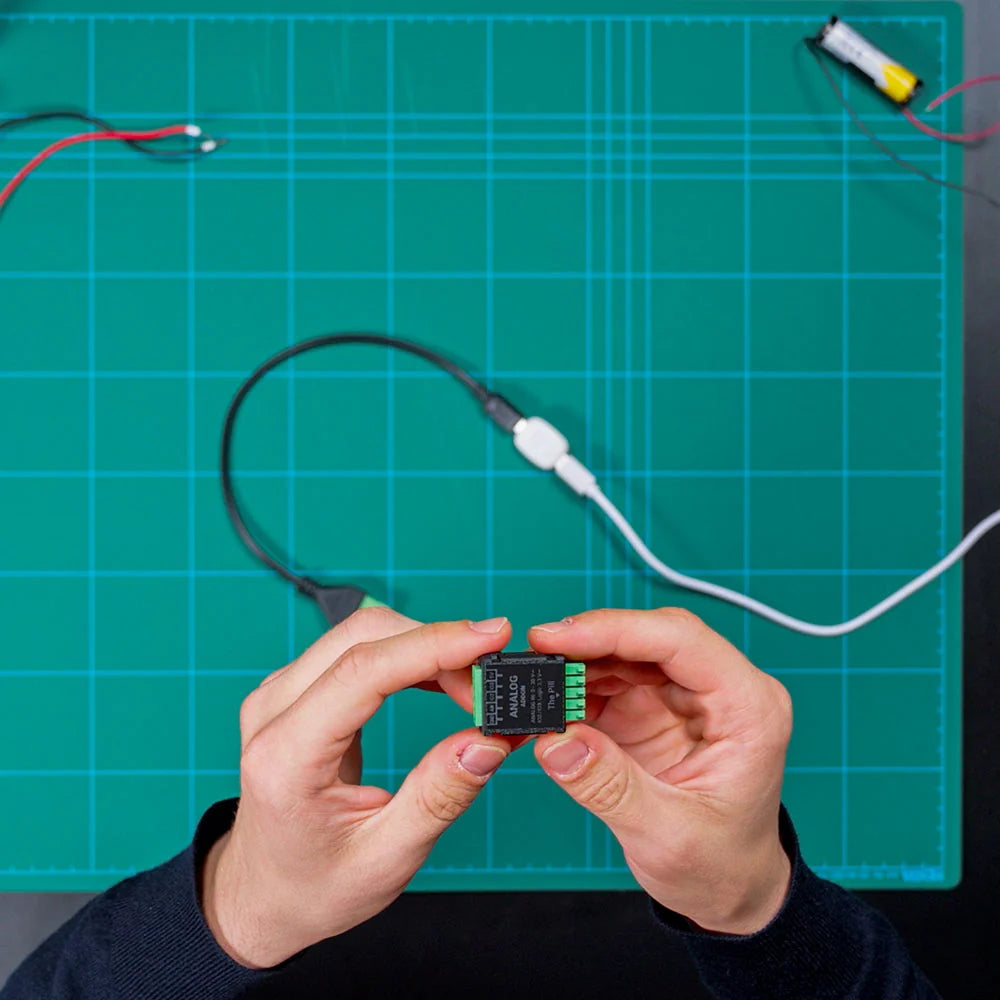

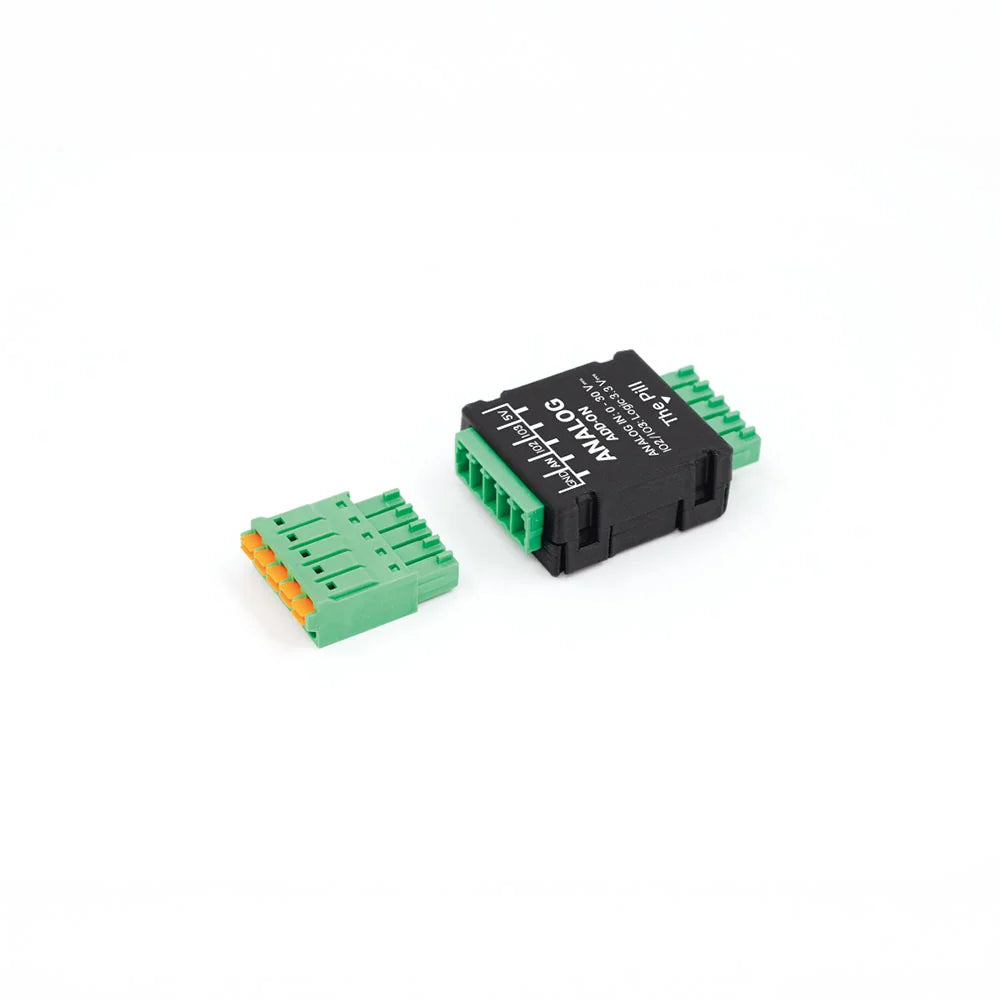

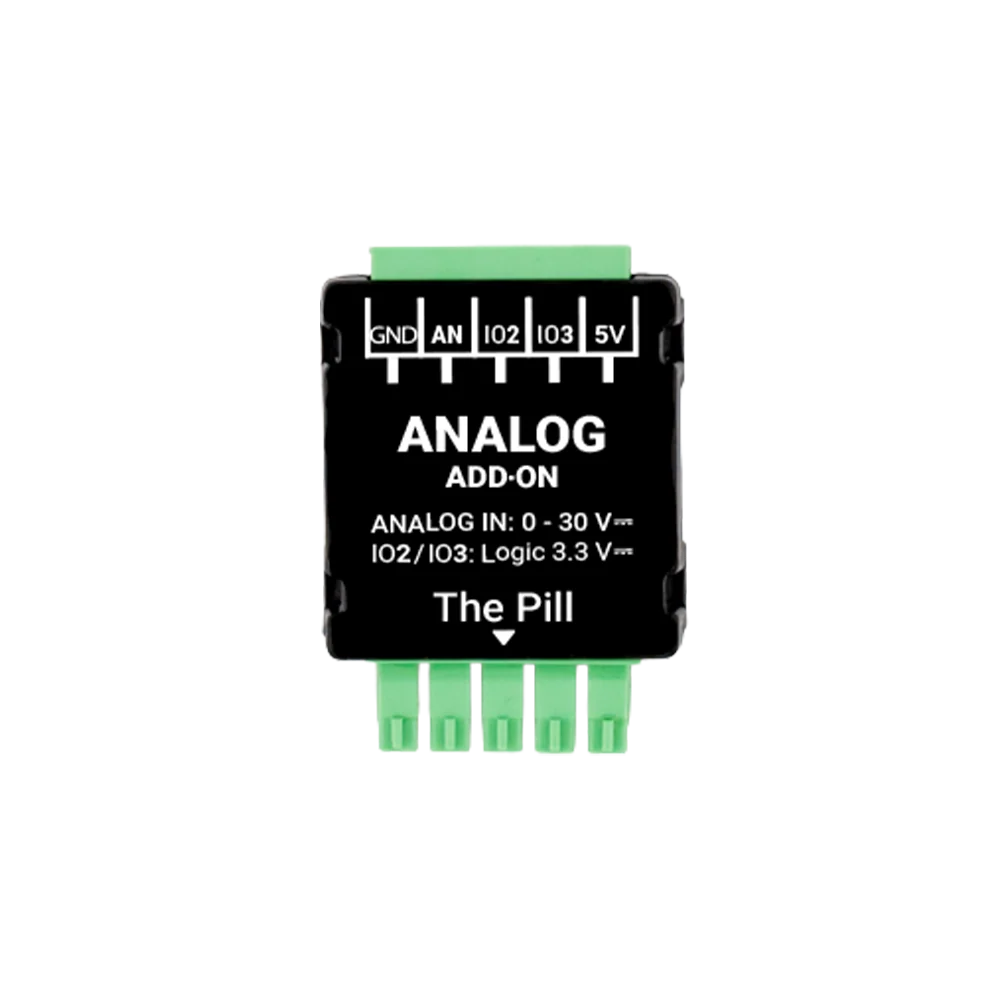

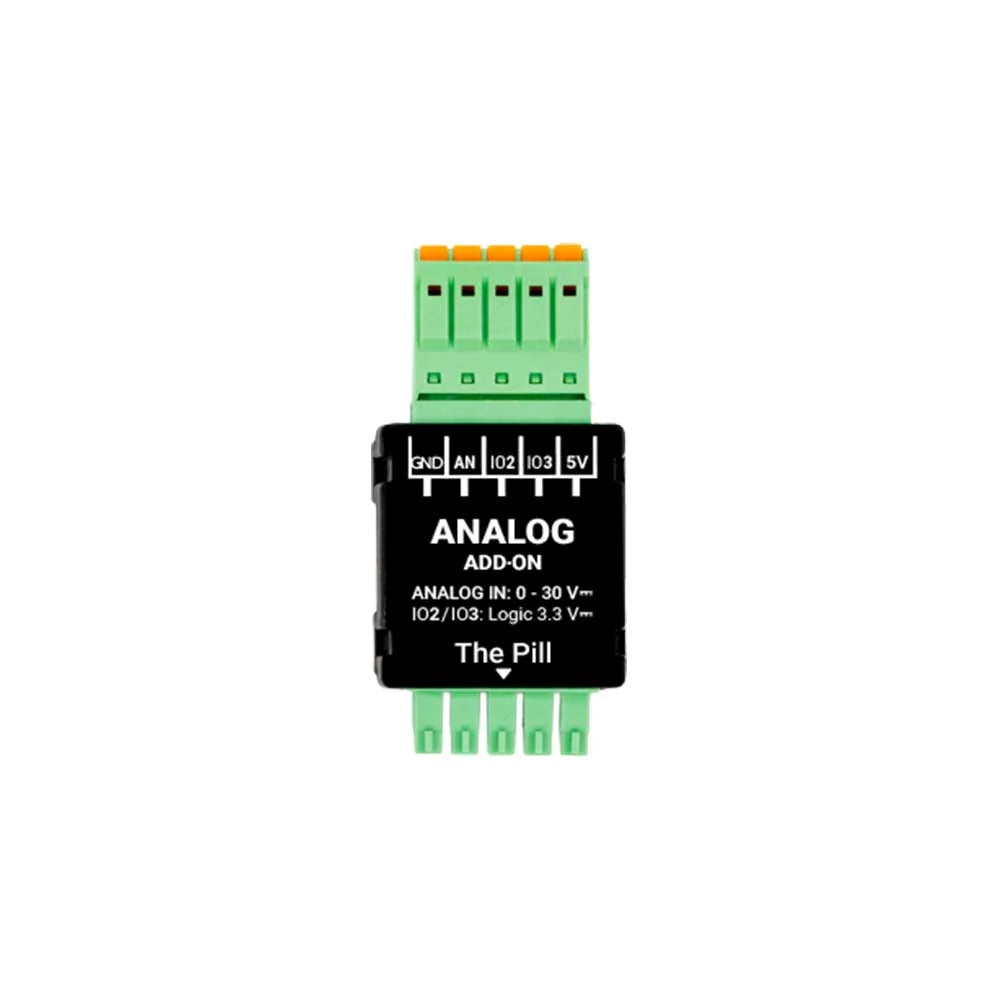

The Analog 0–30 V Add-on extends the voltage-measuring range of The Pill by Shelly, allowing it to monitor analogue sensors and DC voltages up to 30 V. It supports common 0–5 V sensors and battery monitoring applications, including 4.2 V, 12 V and 24 V systems. The 5-Terminal Add-on is required for connection to The Pill.
|
Physical |
|
|
Size (HxWxD): |
36.5 mm x 26.5 mm x 11.5 mm |
|
Weight: |
8 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Sensors, meters |
|
|
Voltmeter range (DC) |
0 V - 30 V |
|
Voltmeter accuracy: |
±(2% + 5d) |
|
Input circuits ratings |
|
|
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
|
Digital inputs max. voltage |
3.3 V |
|
Output circuits ratings |
|
|
Max. switching voltage: |
3.3 V (logic-level) |
|
Max. switching current: |
20 mA |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
