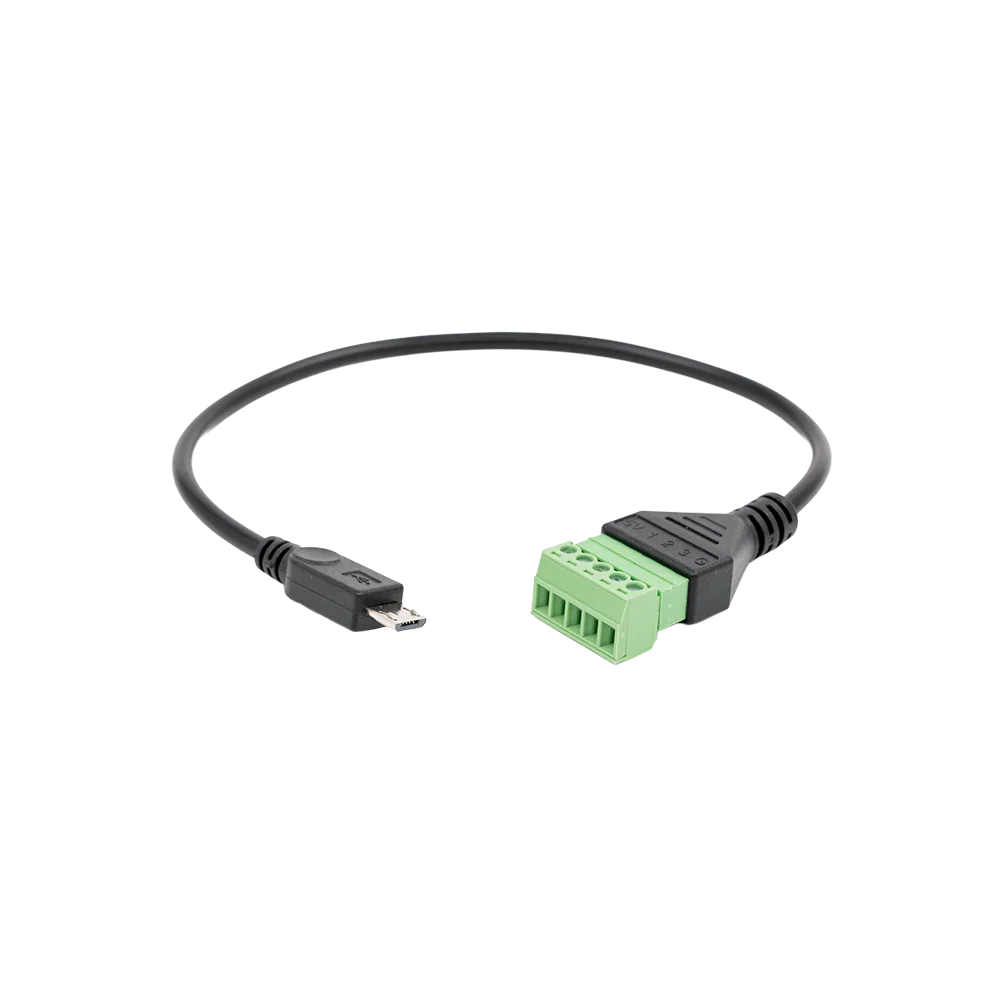

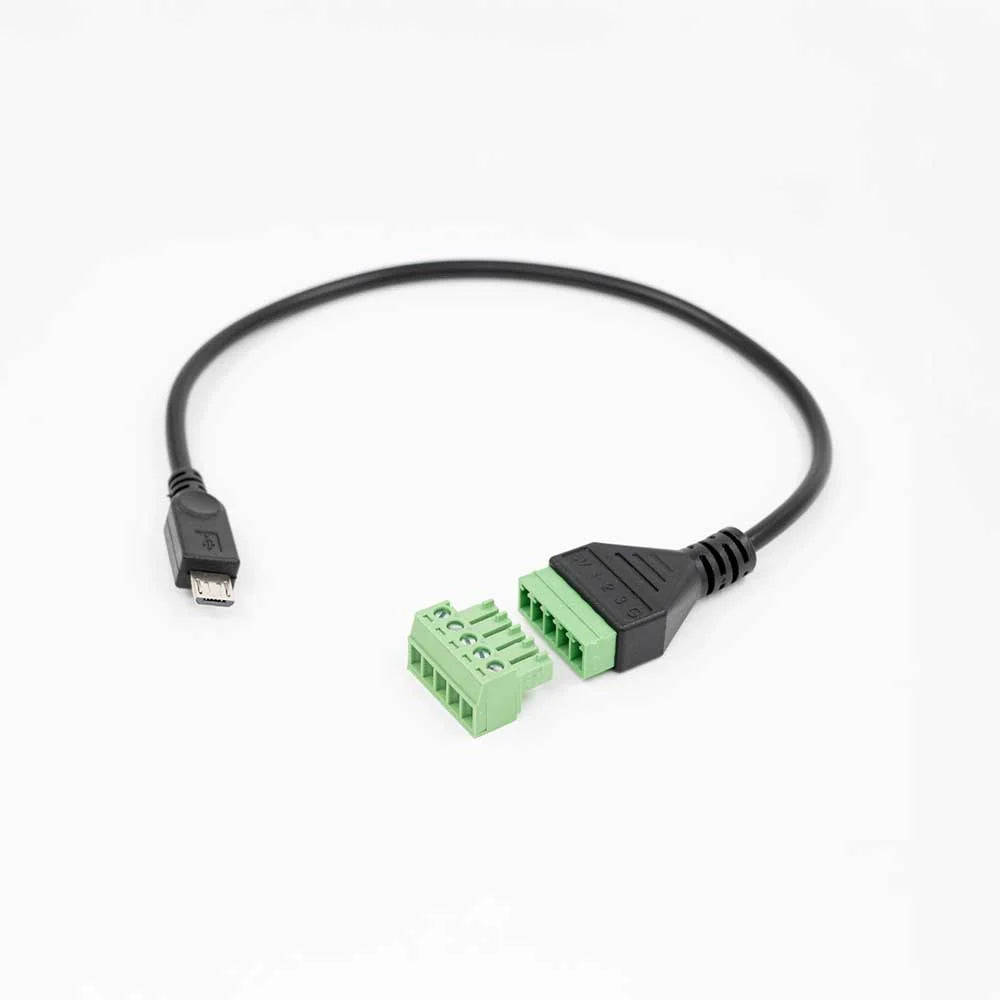

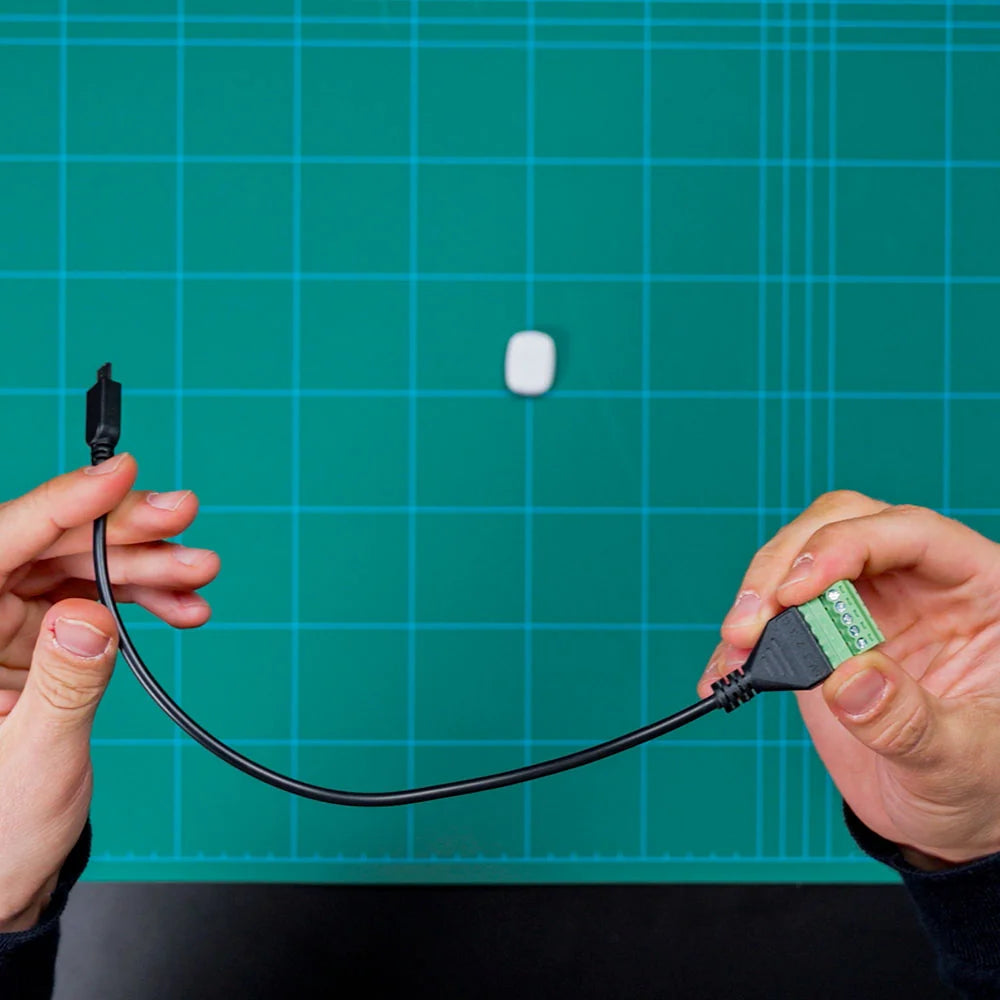

5-Terminal Add-on (Accessory for The Pill by Shelly)
PILLMUSB
Regular price
$15.73 AUD
PILLMUSB
Regular price
$15.73 AUD

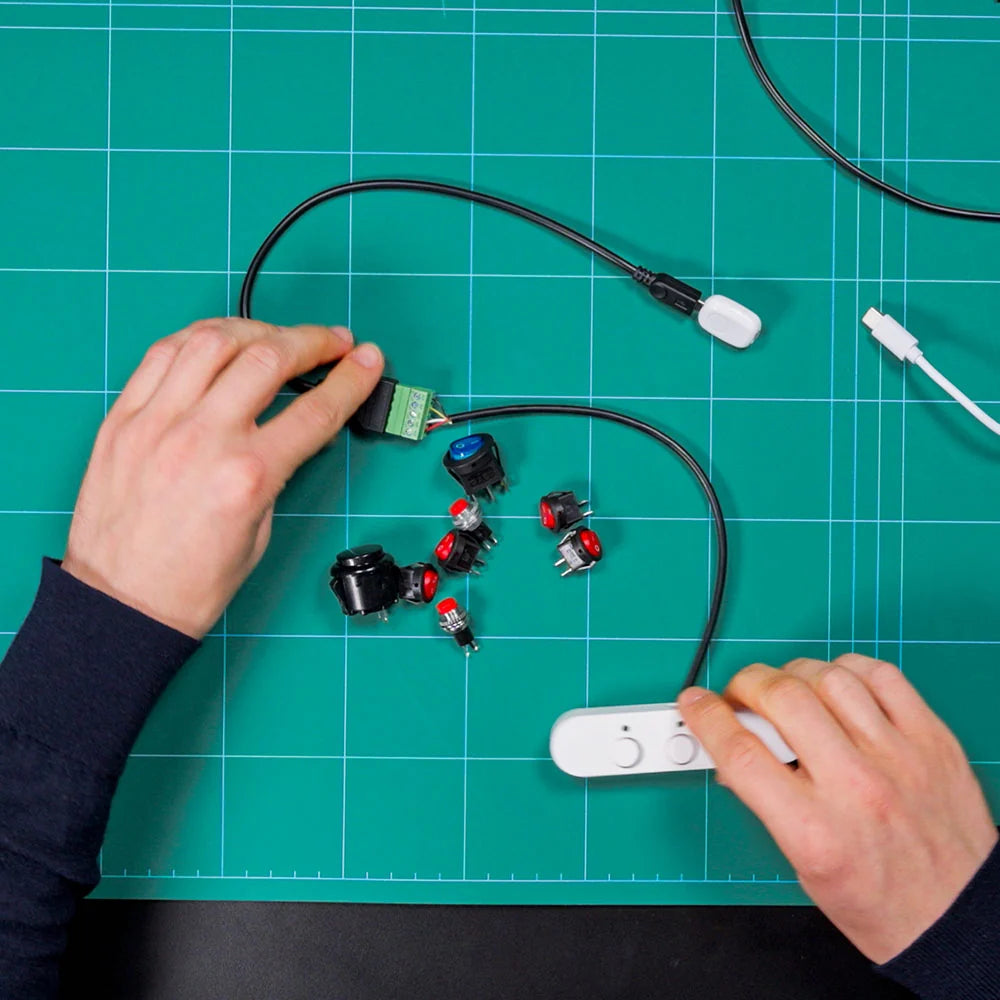

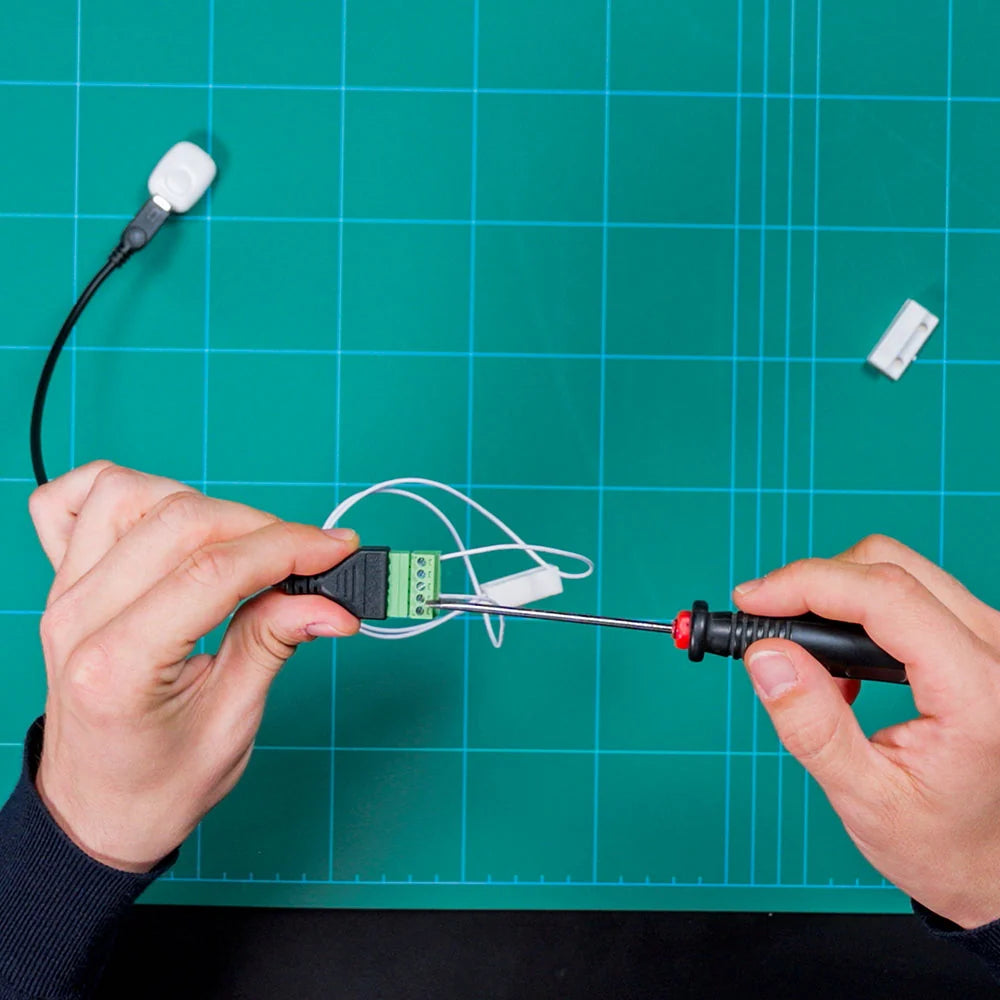

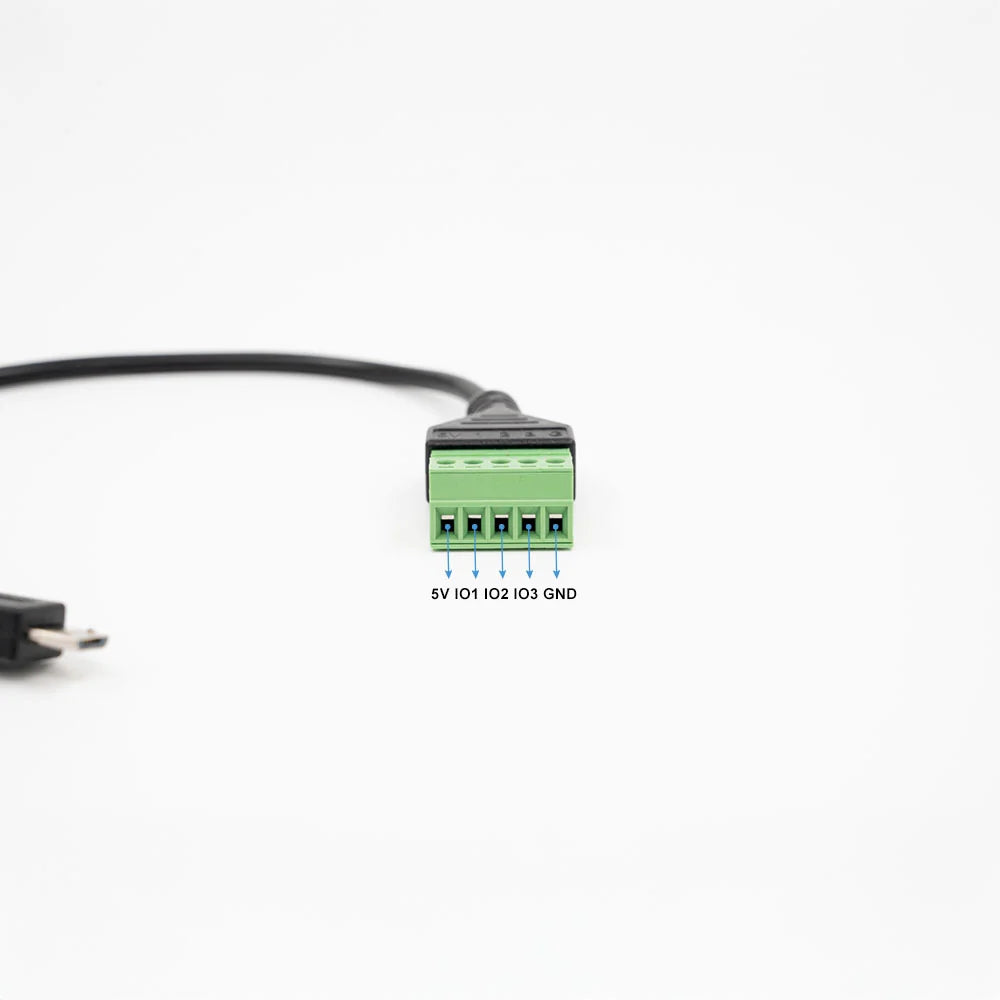

The 5-Terminal Add-on expands the hardware capabilities of The Pill by Shelly. It provides terminals for three 3.3 V logic-level inputs or outputs, plus 5 V power and a GND reference. Use it with digital inputs and outputs, a 0–2.5 V analogue input, or compatible DS18B20 and DHT22 temperature sensors.
|
Physical |
|
|
Size (HxWxD): |
44 mm x 23 mm x 10mm |
|
Weight: |
23 g |
|
Cable length: |
24 cm |
|
Wire colors: |
Black |
|
Shell color: |
black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
