Shelly Wall Display X1i – 4″ Smart Home Control Panel

Physical

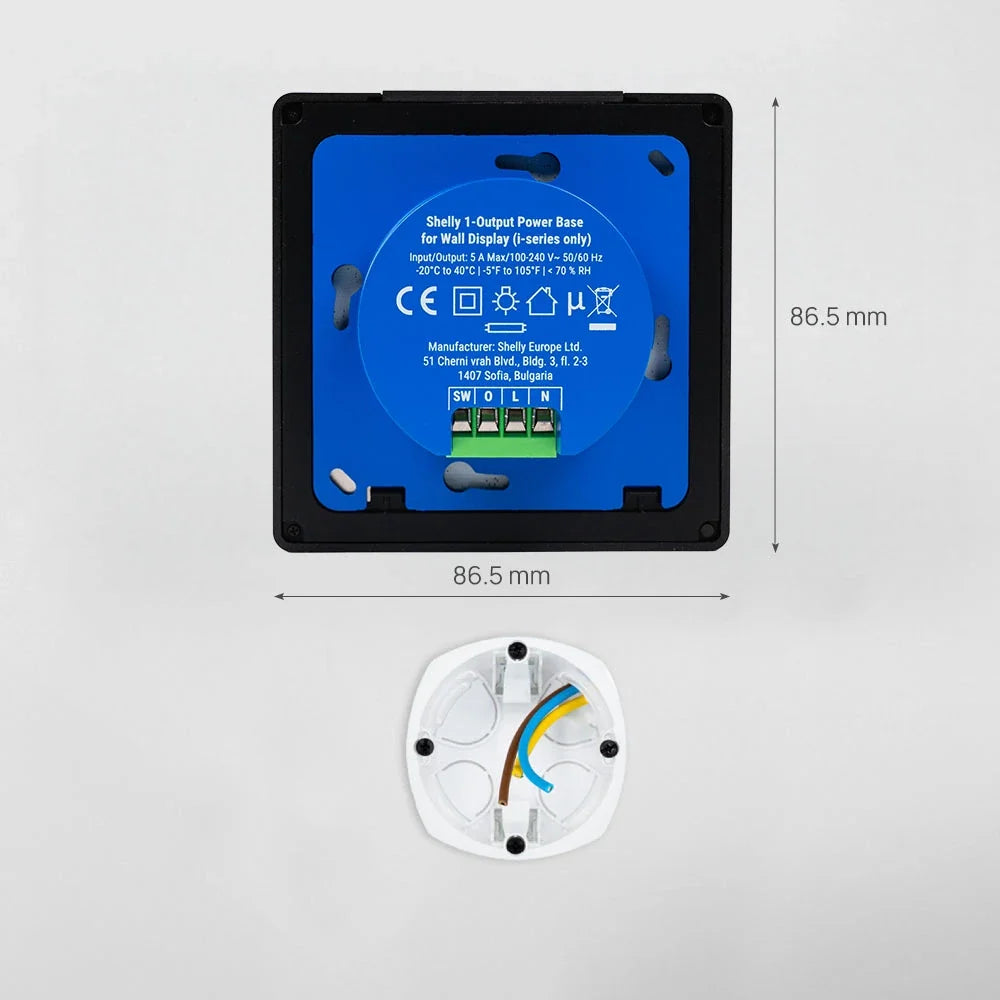

Size (HxWxD):

With power base: 86.5х86.5х35.7 mm / 3.40x3.40x1.40 inch

Without power base: 86.5х86.5х11 mm / 3.40x3.40x0.43 inch

Weight:

With power base: 163 g / 5.75 oz

Without power base: 113 g / 3.99 oz

Touch Screen:

5-point capacitive

Screen resolution, px:

720x720p

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 inch

Mounting:

Wall box

Shell material:

Plastic, aluminum, glass

Shell color:

Display: Black, Silver

1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%)

Speaker:

1 W

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

100-240 V~, 50/60Hz

Power consumption:

< 5 W

USB TYPE-C power supply:

5V⎓, 1A

Output circuits ratings

Max. switching voltage:

240 ~

Max. switching current:

5 A

USB TYPE-C, voltage:

5 V⎓

USB TYPE-C, current:

0.5 A

Sensors, meters

Light sensor:

Yes

Microphone:

Yes

Proximity sensor:

Yes

Radio

Wi-Fi

Protocol:

Wi-Fi 6 Dual Band

RF band:

2412 – 2472 MHz

5150 – 5850 MHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

Rockchip RK3326-S Quad core Cortex-A35 1.5GHz

RAM:

1 GB

Flash:

8 GB

System:

Android 11

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 2 URLs per hook

Scripting:

No

MQTT:

Yes
