Shelly 1PM Gen 4

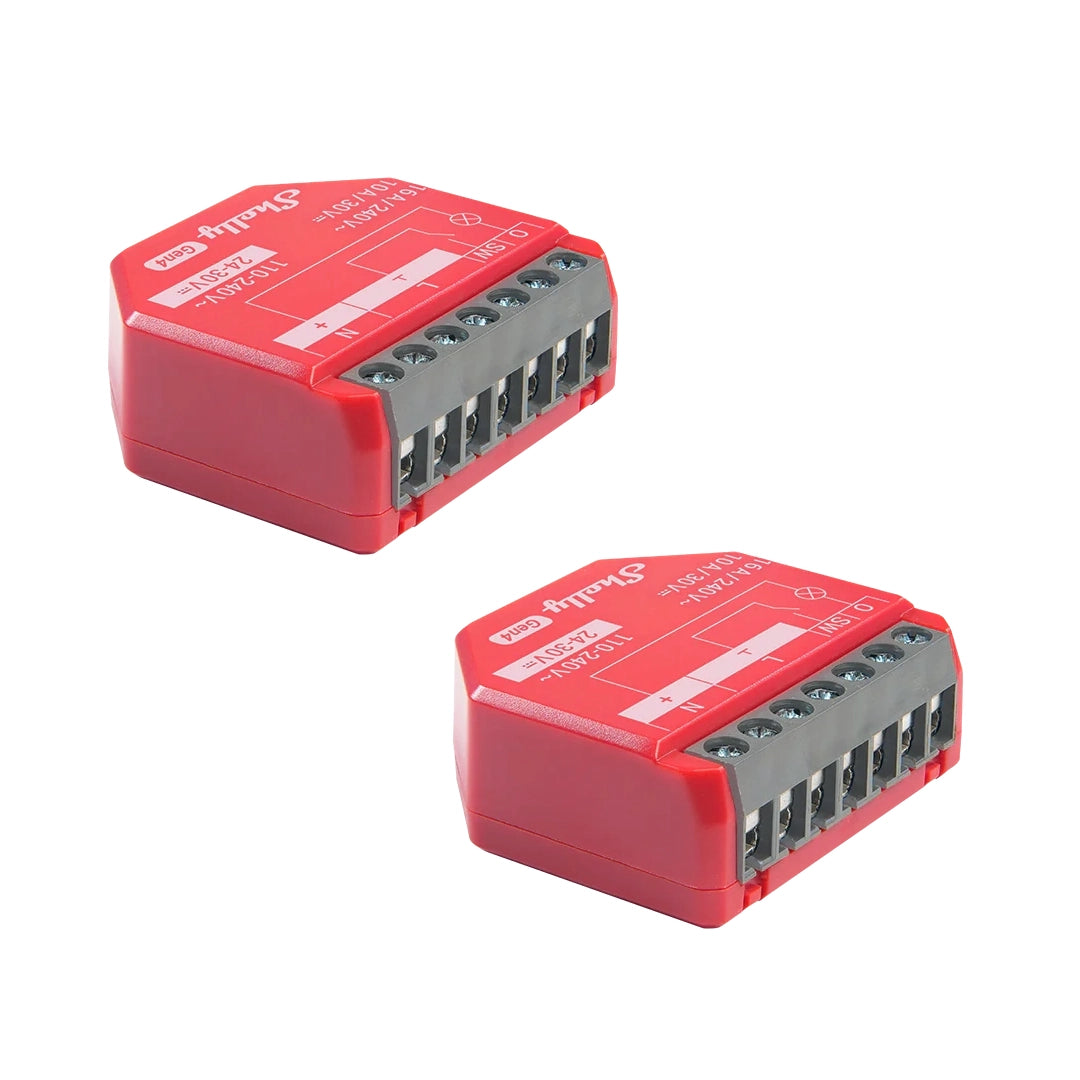

Shelly 1PM Gen 4 – Compact Smart Switch with Power Monitoring
The Shelly 1PM Gen 4 is a next-generation smart switch that combines compact design, fast performance, and precise energy monitoring. With multiprotocol support (Wi-Fi, Zigbee, Bluetooth, and Matter certification), it integrates easily into any modern automation setup for reliable control of lights and appliances.
Features:
- Multiprotocol: Wi-Fi, Zigbee, Bluetooth & Matter
- Wi-Fi & Zigbee range extender + Bluetooth gateway
- Built-in power meter for real-time energy monitoring
- Free data storage for energy analysis
- Works with Apple HomeKit, Alexa, Siri & Home Assistant
- Supports both low and high voltage devices
- Compact retrofit design – install behind switches & sockets
- Schedules, scenes & local actions support
- HTTPS, MQTTS, scripting & WebSocket support
- Virtual components & KNXnet/IP communication
- Internal temperature sensor for overheating protection
- No hub required – control via Shelly Smart Control app or automation platforms
Perfect for homes, offices, and businesses looking for energy savings and reliable automation control.
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
37x42x16 mm / 1.46x1.65x0.63 inch |
|
Weight: |
27 g / 0.95 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
|
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in |
|
Mounting: |
Wall console |
|
Shell material: |
Plastic |
|
Shell color: |
Red |
|
Terminals color: |
Grey (Mouse Grey) |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
110-240 V~ 24-30 V⎓ |
|
Power consumption: |
< 1 W |
|
Neutral not needed: |
No |
|
External protection: |
Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
|
Output circuits ratings |
|
|
Max. switching voltage: |
240 V~ 30 V⎓ |
|
Max. switching current: |
16A (240 V~) 10A (30 V⎓) |
|
Sensors, meters |
|
|
Voltmeter (AC): |
Yes |
|
Ammeter (AC): |
Yes |
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n/ax |
|
RF band: |
2412 - 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth |
|
|
Protocol: |
5.0 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
Zigbee |
|
|
Protocol: |
802.15.4 |
|
Zigbee repeater: |
Yes |
|
RF bands: |
2400 to 2483.5 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
