Shelly Wall Display with BLU H&T

SH-SHELLYWALLBHT
Style
$194.00
Authentic Guarantee. We strictly avoid grey imports
Flat Rate $10 Shipping. Australia Wide. Free over $200
Return Policy. Shop with Confidence

Overview

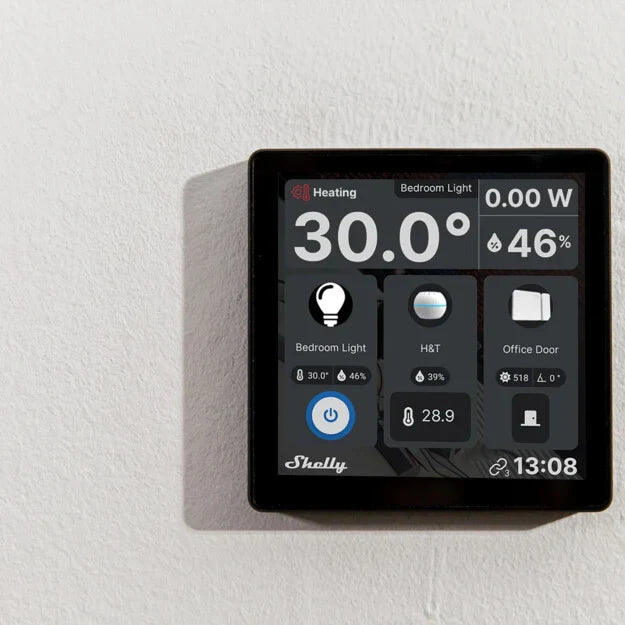

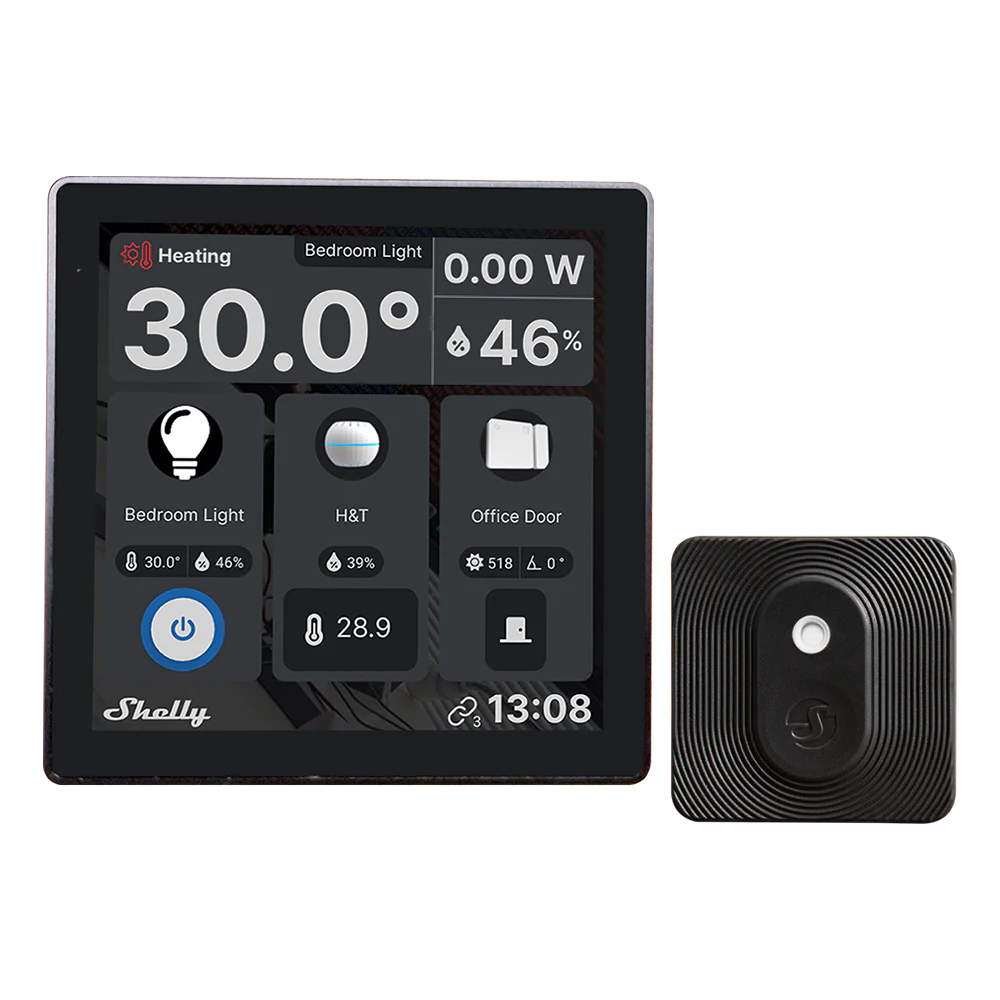

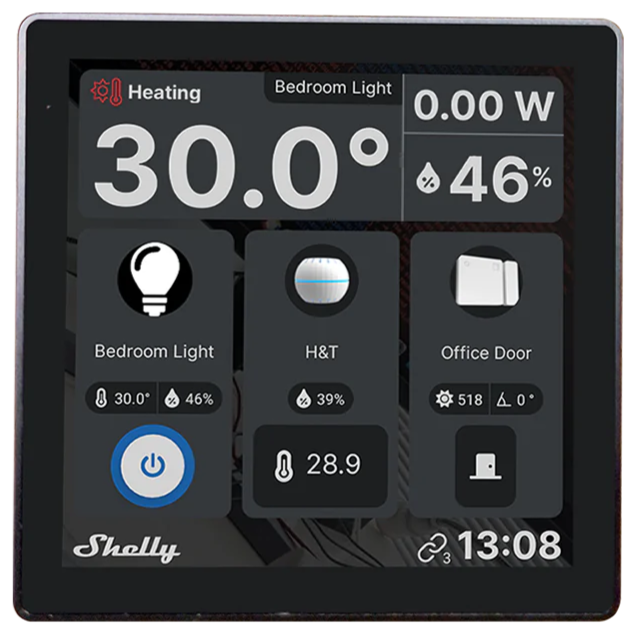

The Shelly Wall Display is an easy-to-use 4” smart control panel that provides centralised monitoring and control of all Shelly devices in your home. Its minimalistic design, customisable home screen, and quick 10-minute installation make it an ideal replacement for an old light switch, enabling smart home automation with a single tap.


Key Features

• Integrated 5A relay for appliance control (neutral required)

• Embedded sensors for temperature, humidity, and LUX monitoring

• Power consumption tracking of all devices in a selected room

• Can function as a room thermostat for smart climate control

• Intuitive navigation with a customisable home screen and adjustable brightness

• Create smart scenes and schedules for automation

Specifications

PHYSICAL

Size (HxWxD):85x85x30mm / 3.35x3.35x1.18 in

Mounting: Wall box

Shell material: Plastic

Colour: Black / White

ENVIRONMENTAL

Ambient temperature:-20 °C to 40 °C / -5 °F to 105 °F

Humidity 30 % to 70 % RH

Max. altitude 2000 m / 6562 ft

ELECTRICAL

Power supply: 230 VAC, 50/60Hz

External protection: 5 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3

Power consumption:< 1.0 W

OUTPUT CIRCUITS RATINGS

Max switching current AC: 5A

Power measurement: No

Voltage protection / Cutoff: No

Current protection / Cutoff: No

Max power protection / Cutoff: No

SENSORS, METERS

Internal-temperature sensor: Yes

RADIO

RF band: 2400 - 2495 MHz

Max. RF power: <20 dBm

Wi-Fi protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) Bluetooth Protocol: 4,2

Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

FIRMWARE CAPABILITIES

Schedules: 20Webhooks (URL actions): 20 with 2 URLs per hook

MQTT: Yes

Scripting: Yes

Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
