Shelly Pro RGBWW PM
SHELLYRGBWPRO
Regular price
$118.00 AUD
SHELLYRGBWPRO
Regular price
$118.00 AUD

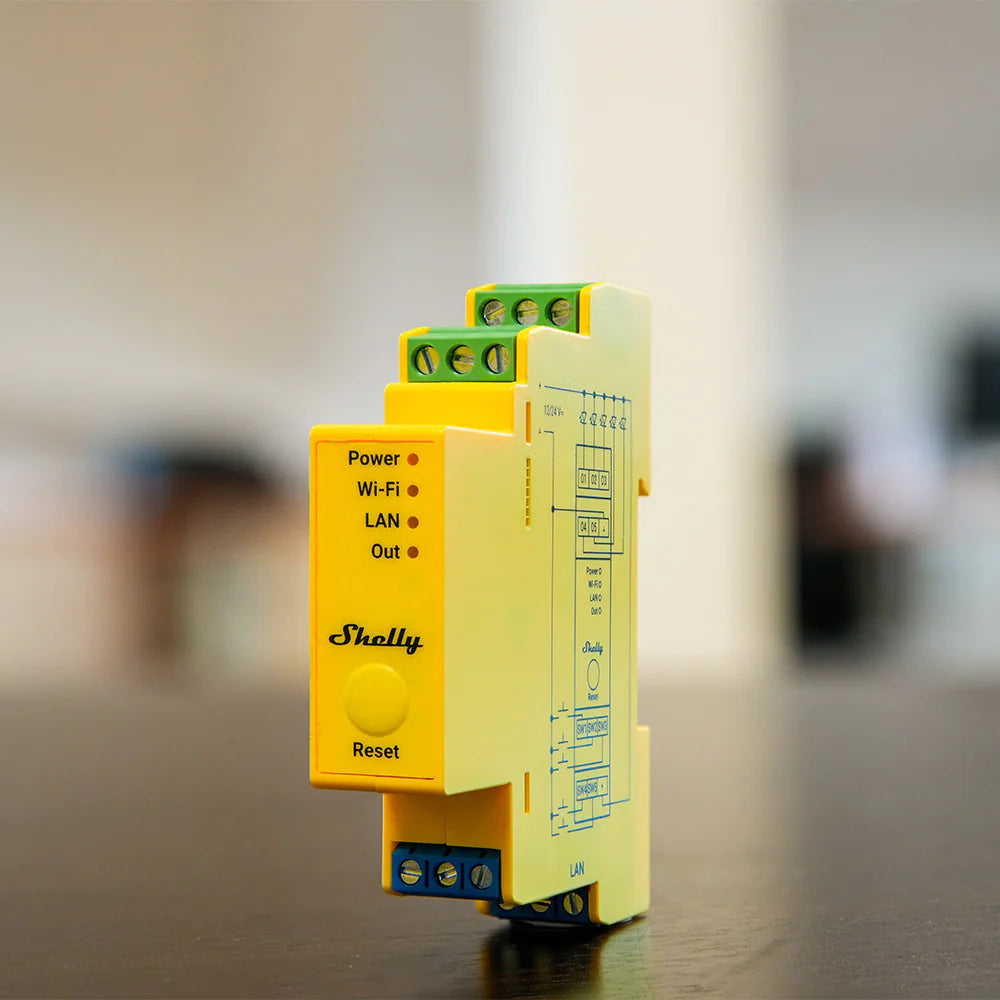

Shelly Pro RGBWW PM is a DIN rail mountable five-channel smart lighting controller designed for advanced LED strip management. It supports multiple lighting profiles including CCT, RGB+CCT, RGB with dual white channels, or five independent light channels, providing flexible configuration for residential and commercial installations.
Each output can be controlled independently (in Light x5 mode), allowing precise adjustment of brightness and colour where required. Integrated power measurement provides real-time monitoring of voltage, current, and energy consumption, making it suitable for both lighting control and energy tracking applications.
With Ethernet, Wi-Fi, and Bluetooth connectivity, the device operates without a hub and integrates easily with the Shelly Smart Control app, Home Assistant, Alexa, and other automation platforms. It also functions as a Wi-Fi range extender and BLE gateway, strengthening network reliability across your installation.
Advanced scripting capabilities enable customised automation scenarios, while built-in overcurrent, overvoltage, and overpower protections ensure safe operation. Night Mode allows predefined brightness levels during evening hours for added convenience.

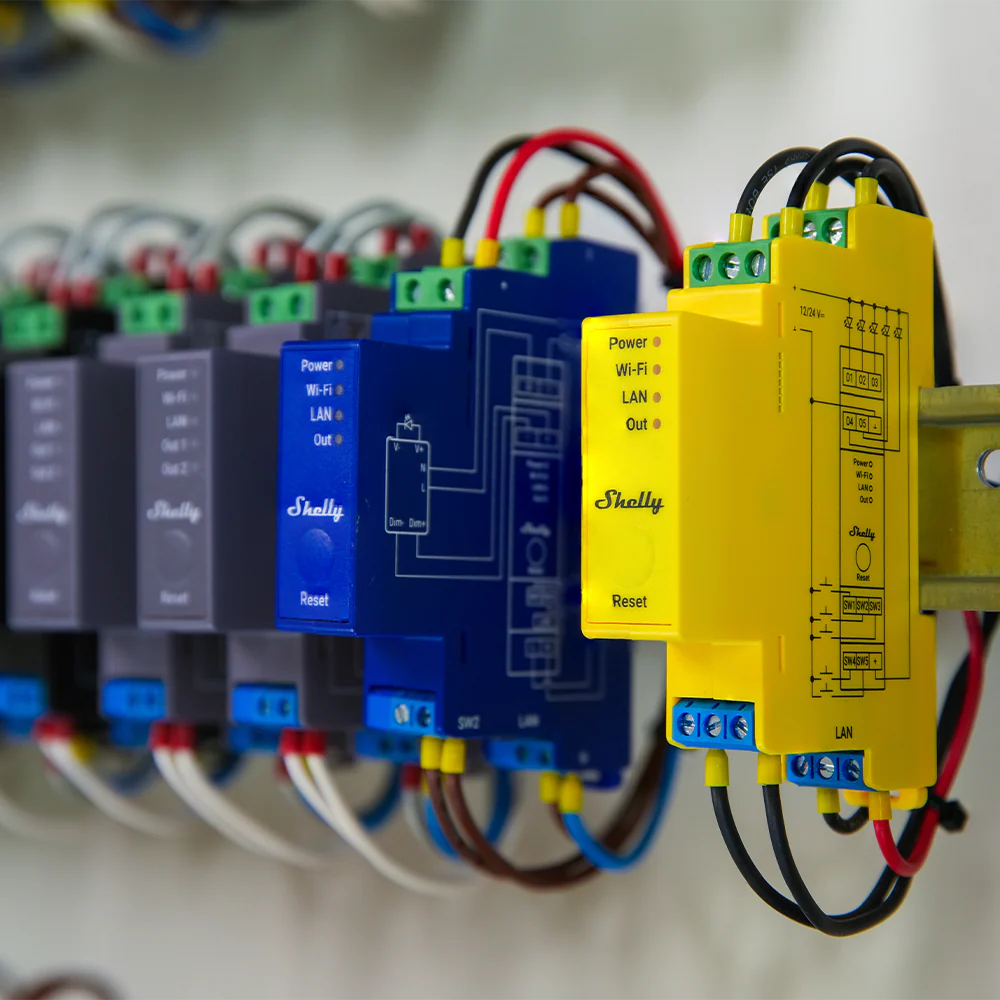

Designed for professional DIN rail installations, Shelly Pro RGBWW PM delivers scalable, flexible, and energy-aware lighting control for modern smart environments.
|
Quantity |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
|
Weight: |
61 g / 2.15 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
|
Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (green connector) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in (green connector) |
|
Mounting: |
DIN rail |
|
Shell material: |
Plastic |
|
Shell color: |
Yellow |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
12-24 VDC |
|
Power consumption: |
< 1.5 W |
|
External protection: |
16 A, tripping characteristic B or C, |
|
Output circuits ratings |
|
|
Max. switching voltage: |
24 VDC |
|
Max. switching current: |
16 A |
|
Max. control current: |
16 A (total), 6 A (per channel) |
|
CCT range |
2700K - 6500K (<- default, configurable to any range in between 1000K and 10000K) |
|
Sensors, meters |
|
|
Voltmeter (DC) |
12 V - 24 V, ± 10 % |
|
Voltmeter accuracy: |
+/-5% (12V-24V DC) |
|
Ammeter (DC) |
0 mA - 5 A, ± 10 % |
|
Ammeter accuracy: |
+/-5% |
|
Power and energy meters: |
Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy |
|
Measurement data storage: |
No |
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2401 - 2495 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth |
|
|
Protocol: |
4.2 |
|
RF band: |
2400 - 2483.5 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP32-D0WDQ6 |
|
Clock frequency: |
40 Mhz |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
Encryption: |
Yes |
|
Advanced schedules |
Yes |
|
KVS (Key-Value Store): |
Yes |
Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
