Shelly Pro 2

SH-SHELLYPRO2
$118.39 AUD
Authentic Guarantee. We strictly avoid grey imports
Flat Rate $15 Shipping. Australia Wide.
Return Policy. Shop with Confidence

Overview

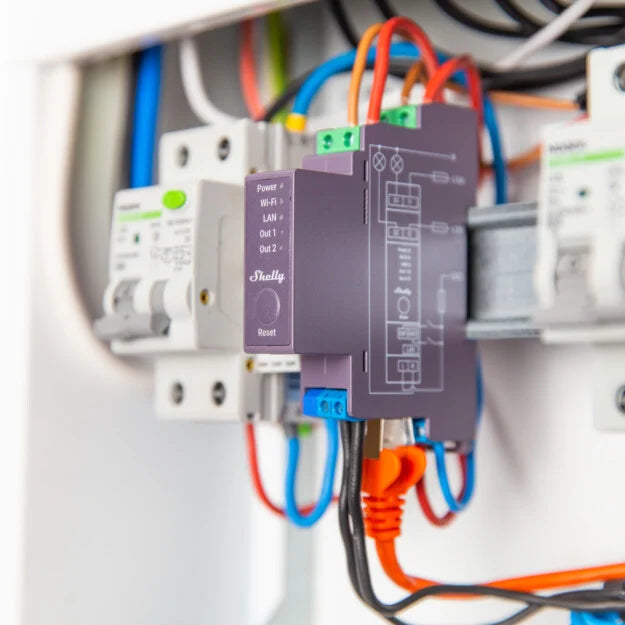

The Shelly Pro 2 is a DIN rail-mountable 2-channel smart switch with potential-free contacts, designed for professional automation solutions. Equipped with gen2 firmware flexibility and LAN connectivity, it offers standalone operation within a local Wi-Fi network or integration with cloud-based home automation services.


Key Features

• 2-channel smart switch with potential-free contacts

• DIN rail mountable for professional installations

• LAN & Wi-Fi connectivity

• Standalone or cloud-based control for enhanced automation

• Embedded web interface for remote monitoring, control, and settings adjustments


Remote Access & Control

• Monitor and control devices remotely from anywhere with an internet connection

• Direct access via LAN or Wi-Fi without requiring a hub

• Integration with home automation services

Specifications

PHYSICAL

Size (HxWxD):94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in

Weight: 76 g / 2.68 oz

Mounting: DIN rail

Screw terminals max torque: 0.4 Nm / 3.54 lbin

Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)

Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)

Shell material: Plastic

Colour: Gray

ENVIRONMENTAL

Ambient temperature:-20 °C to 40 °C / -5 °F to 105 °F

Humidity 30 % to 70 % RH

Max. altitude 2000 m / 6562 ft

ELECTRICAL

Power supply voltage AC: 110 - 240 V

Power supply voltage DC: N/A

Power consumption:< 3 W

Neutral not needed: No

OUTPUT CIRCUITS RATINGS

Max switching voltage AC: 240 V

Max switching voltage DC: N/A

Max switching current AC: 16 A per channel, 25 A total

Max switching current DC: N/A

SENSORS, METERS

Temperature sensor: Yes

RADIO

RF band: 2400 - 2495 MHz

Max. RF power: <20 dBm

Wi-Fi protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth Protocol: 4.2

Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

CPU: ESP32-D0WDQ6

Flash:8 MB

FIRMWARE CAPABILITIES

Schedules: 20Webhooks (URL actions):20 with 5 URLs per hook

Scripting: mJS

MQTT:Yes

CoAP:No

Important: All electrical installation work must be performed by a qualified and licensed electrician. Failure to comply may void product warranties and breach electrical safety laws.
